Dimensional accuracy of the entire body-in-white is the basis to ensure the body frame can be properly and securely joined together via welding, bonding, and riveting. Mech-Mind's all-in-one inline measurement system measures and inspects the entire body-in-white and various parts, ensuring they can perfectly fit one another.
Mech-Eye UHP-140 industrial 3D camera, paired with advanced 3D point cloud processing and GD&T measurement algorithms, delivers measurement accuracy of > ±0.2 mm.
All-in-one Inline Measurement Solution

|  |  |
Mech-Eye UHP-140 Industrial 3D Camera | Mech-Vision Machine Vision Software | Self-Developed Measurement Software |
Micron-level accuracy Advanced image fusion algorithm Resistant to reflection |

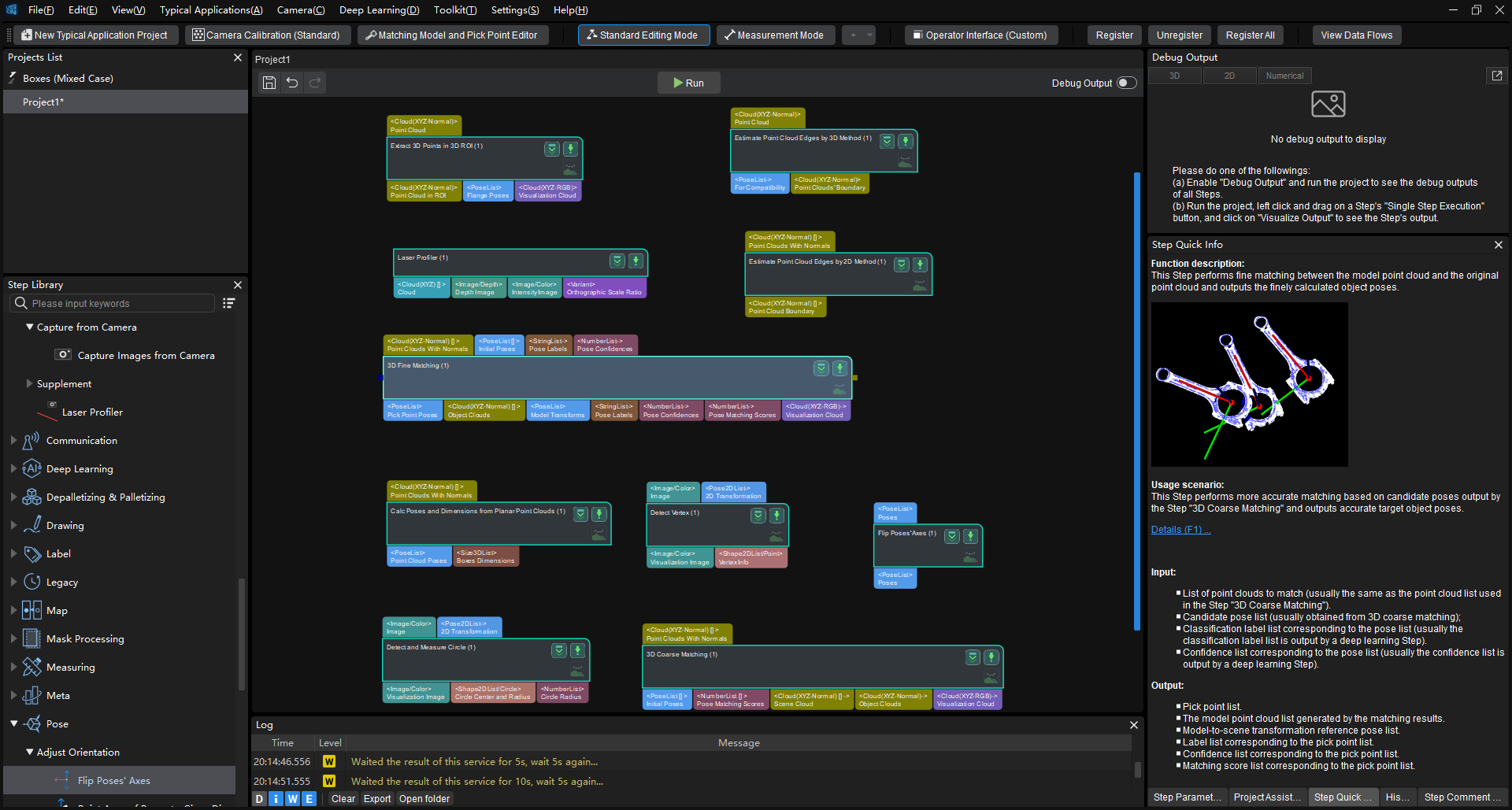

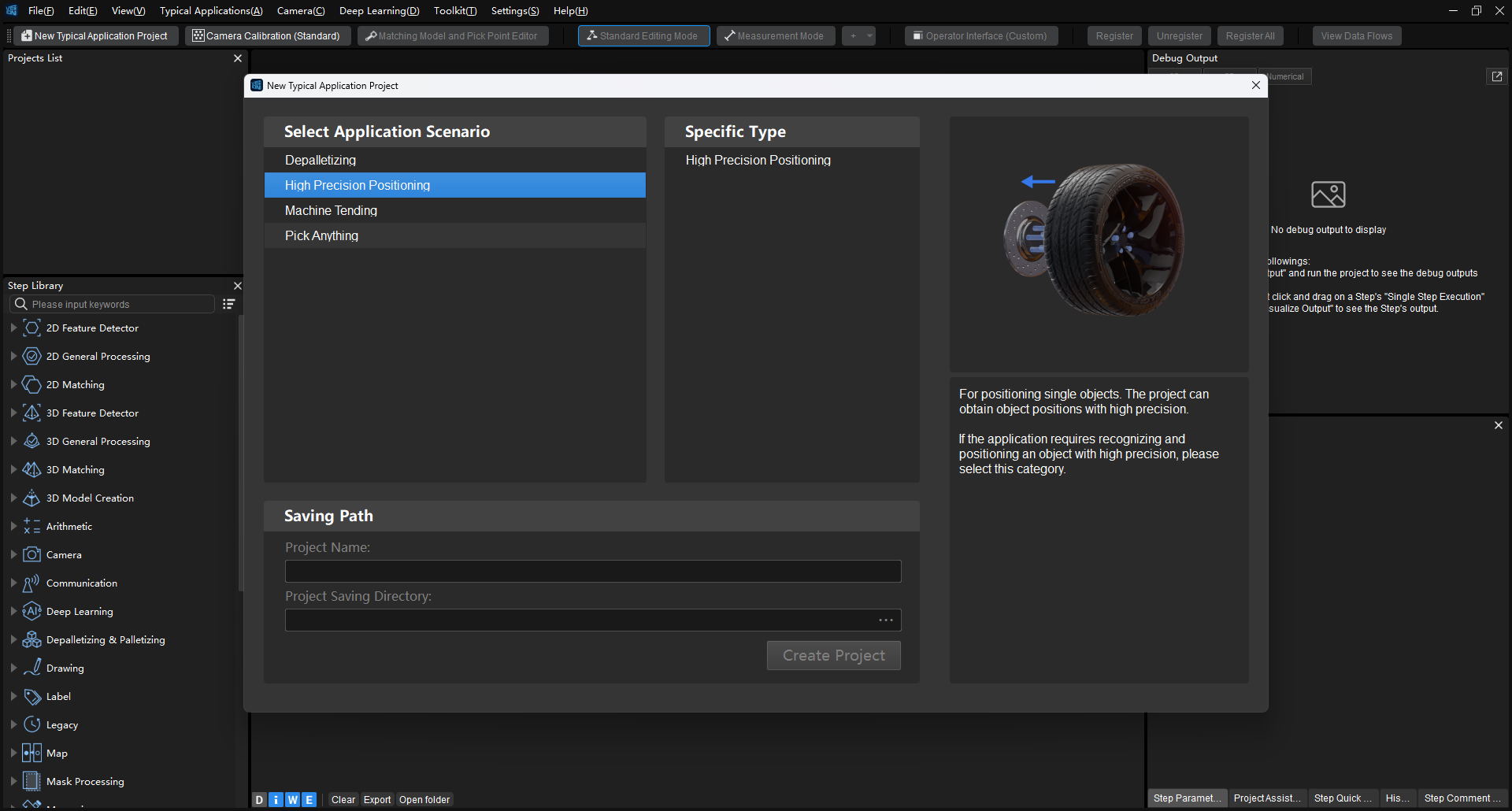

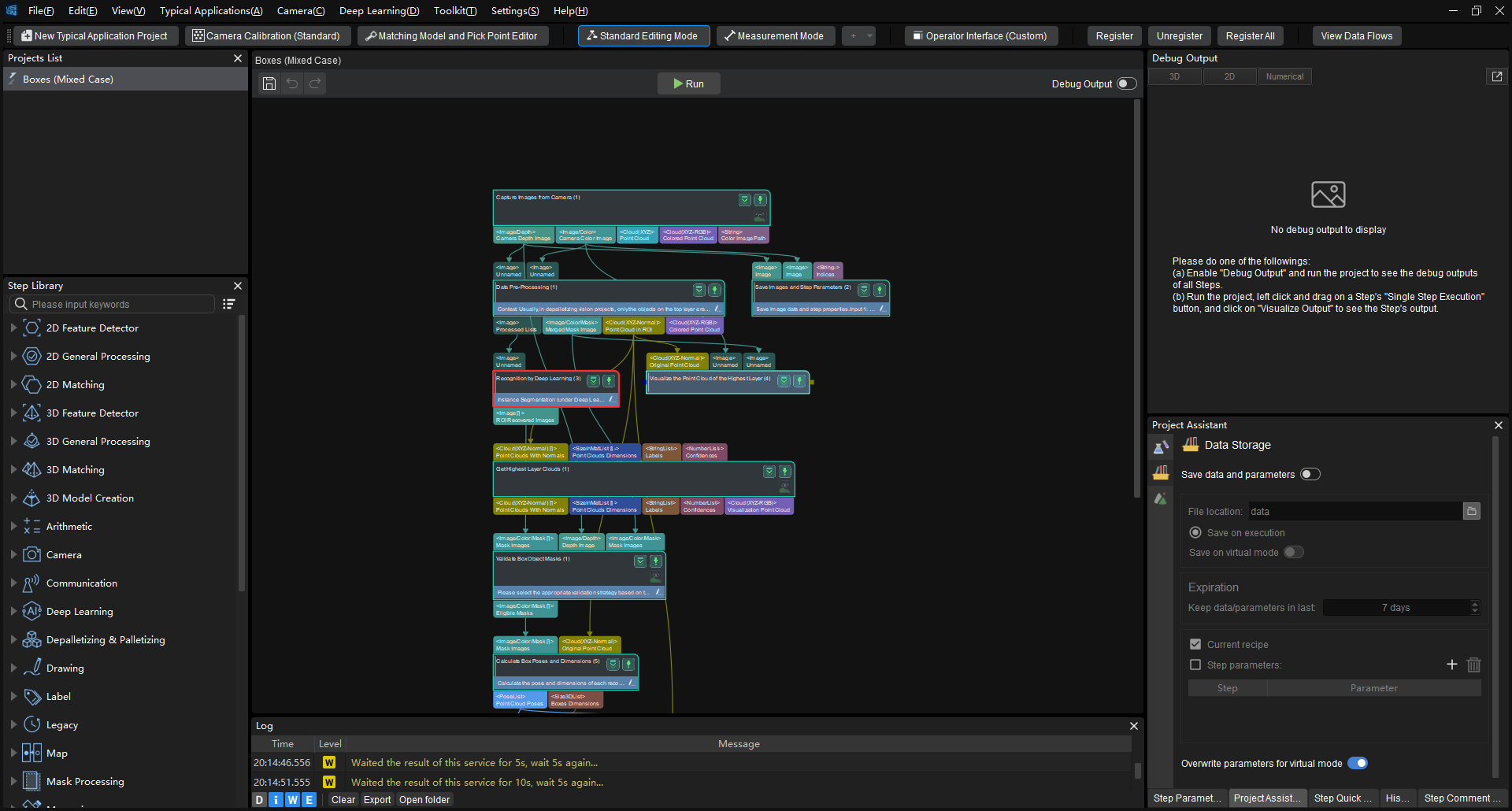

Advanced GD&T measurement algorithm Code-free programming interface Extensive vision tool library |

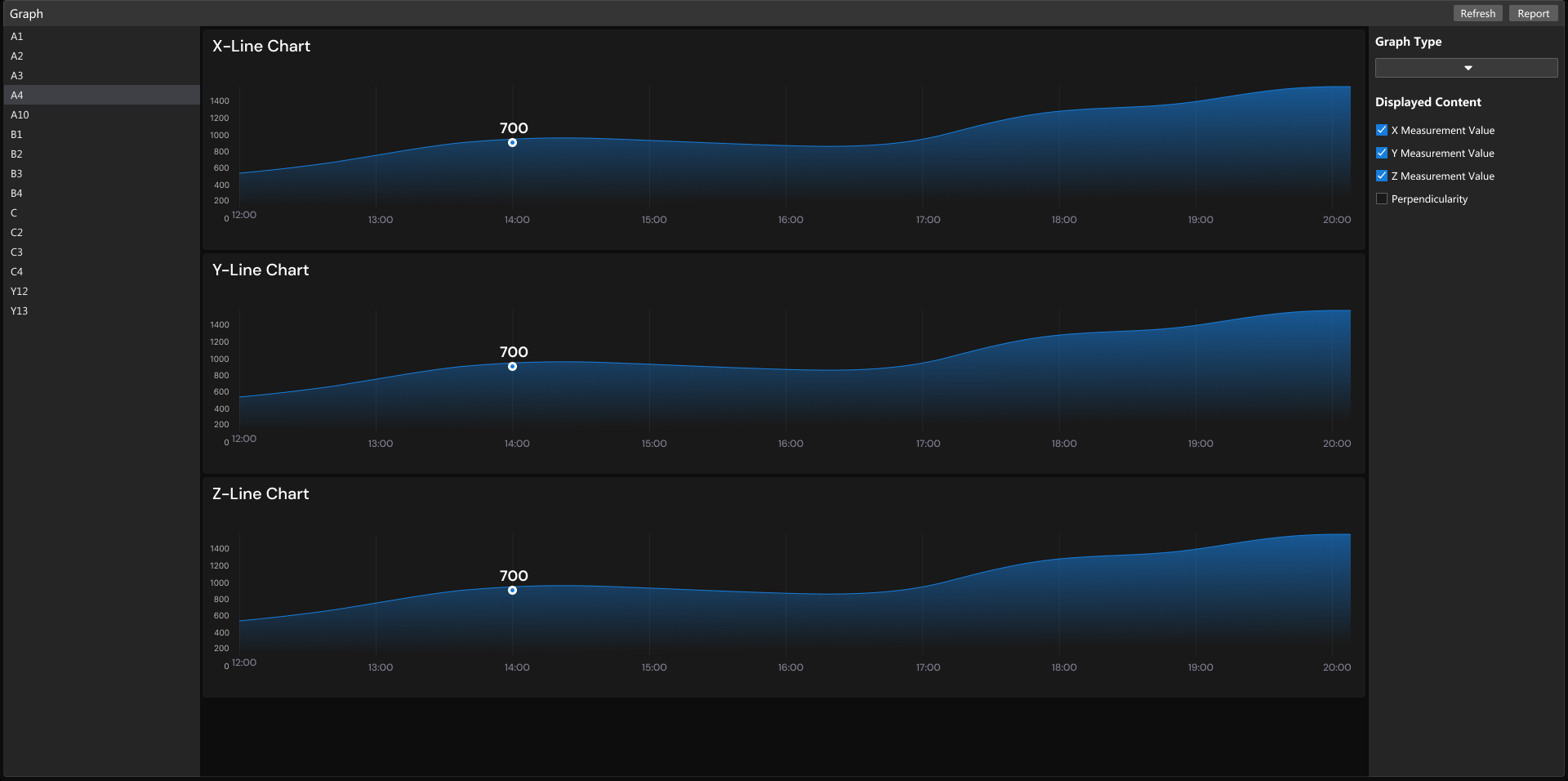

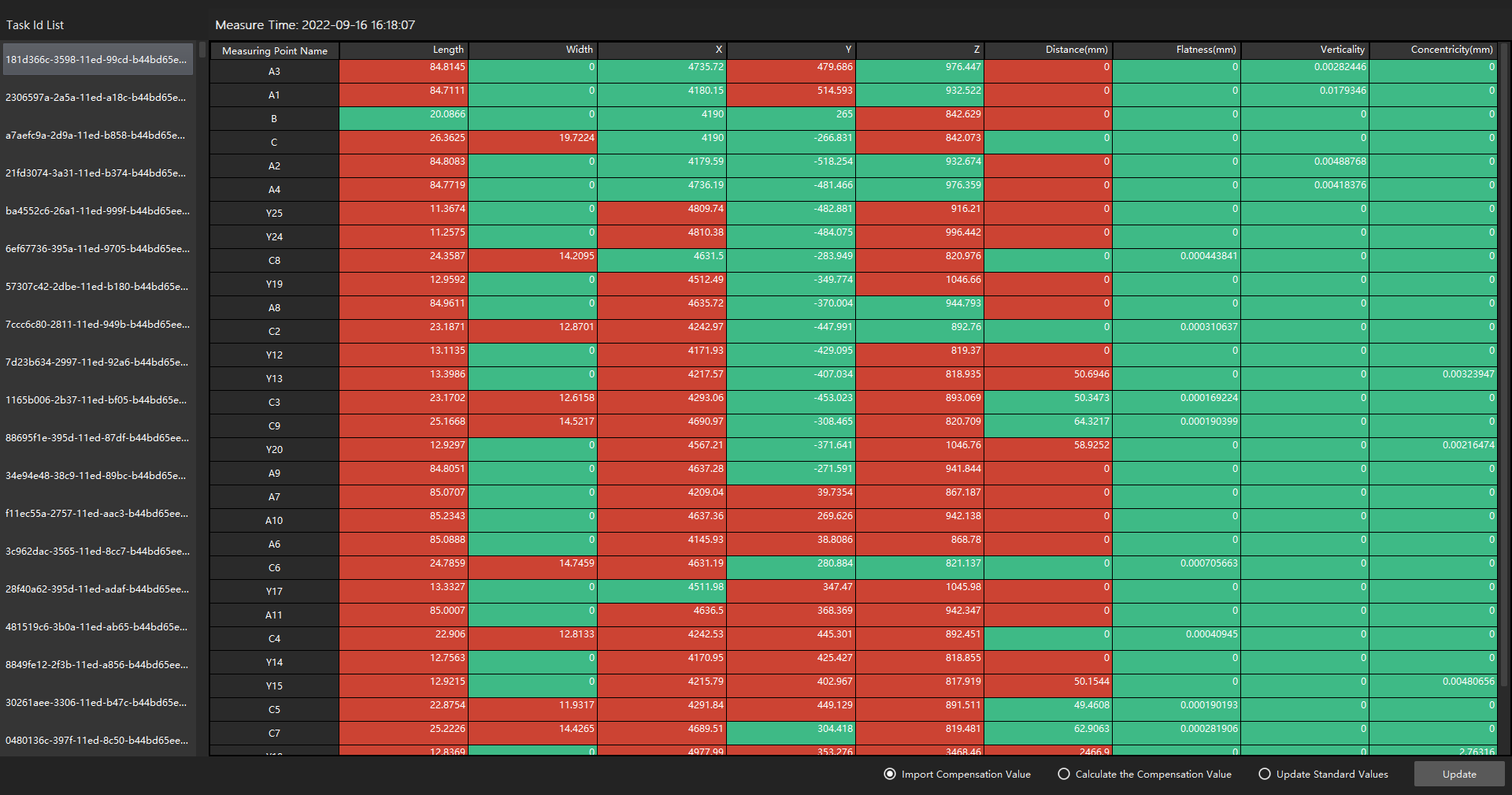

Real-time measurement result exporting Efficient data management with data display, data trend graph, data summary, etc. |
Why Inline Measurement Solution?

|
|
|
Industry-Leading Accuracy and Speed |
| Efficient Deployment |
Industry-leading measurement accuracy of up to ±0.2 mm. Measurement time per point: Min. 2 s
|
|
Advanced algorithms such as 3D point cloud processing and GD&T measurement for simple and efficient application deployment. |

|
|
|
Accurate Results |
| Real-Time Production Monitoring |
Innovative compensation algorithm for temperature drifts that corrects measurement results, ensuring accurate results even if temperature drift occurs.
|
| Get access to production data exporting and measurement results at any time, ensuring real-time production monitoring and data analysis. |
Applications

|
|  |
Subframe | Body side frame | Tray |
Mech-Mind's inline measurement solution measures the GD&T features (straightness, flatness, roundness, parallelism, profile, perpendicularity, position, etc.) of the entire body-in-white and components with extraordinarily high accuracy.
Application Scenarios:
Automotive: Body components measurement, BIW measurement, etc.
New energy battery: CNC machining, pull riveting, welding, etc.
