Home > Products > Mech-Eye 3D Laser Profilers

Mech-Eye 3D Laser Profilers

Mech-Eye LNX 3D laser profilers feature 4K+ resolution* and high scan rates (up to 15 kHz*) to deliver highly accurate 3D data of tiny features and defects at a faster speed. These sensors are designed for industrial measurement and inspection applications in electronics, EV battery, and automotive industries.

4K+ Resolution	Ultra-High Scan Rates	Micron-Level Precision
4,096* data points per profile for high-resolution 3D inspection of targets (dents, seams, edges, etc.)	Scan rates up to 3.3 kHz* (scan of full FOV) and 15 kHz* (scan of full X measurement range). Advanced optics and algorithms to deliver highly accurate 3D data at a faster speed.	X resolution down to 9 μm*, Z repeatability down to 0.2 μm, and ± 0.02% of F.S. linearity, allowing for the high-precision inspection and measurement of tiny features and defects.
Single-Shot HDR	Ease of Use	Multiple Models
The function makes it possible to scan dark (low reflectivity) and reflective (high reflectivity) surfaces in one exposure while creating complete point clouds.	Extensible interface for image acquisition, including C++/C#/Python API. Compliant with GenICam3.0 and GigE Vision standards.	A cutting-edge lineup designed for inspection and measurement in various scenarios across industries.
		* Applicable to LNX-8000 series

Point Cloud Examples


Sealing pin Point cloud obtained by Mech-Eye LNX-8030	Smartphone midplate Point cloud obtained by Mech-Eye LNX-8080	Tire DOT code Point cloud obtained by Mech-Eye LNX-8300

Connector pins Point cloud obtained by Mech-Eye LNX-7530	Battery cell lid Point cloud obtained by Mech-Eye LNX-7580	Battery module Point cloud obtained by Mech-Eye LNX-75300
	Color rendered by height

Applications

Industries: Consumer electronics, EV battery, semiconductor, home appliances, and the automotive industry

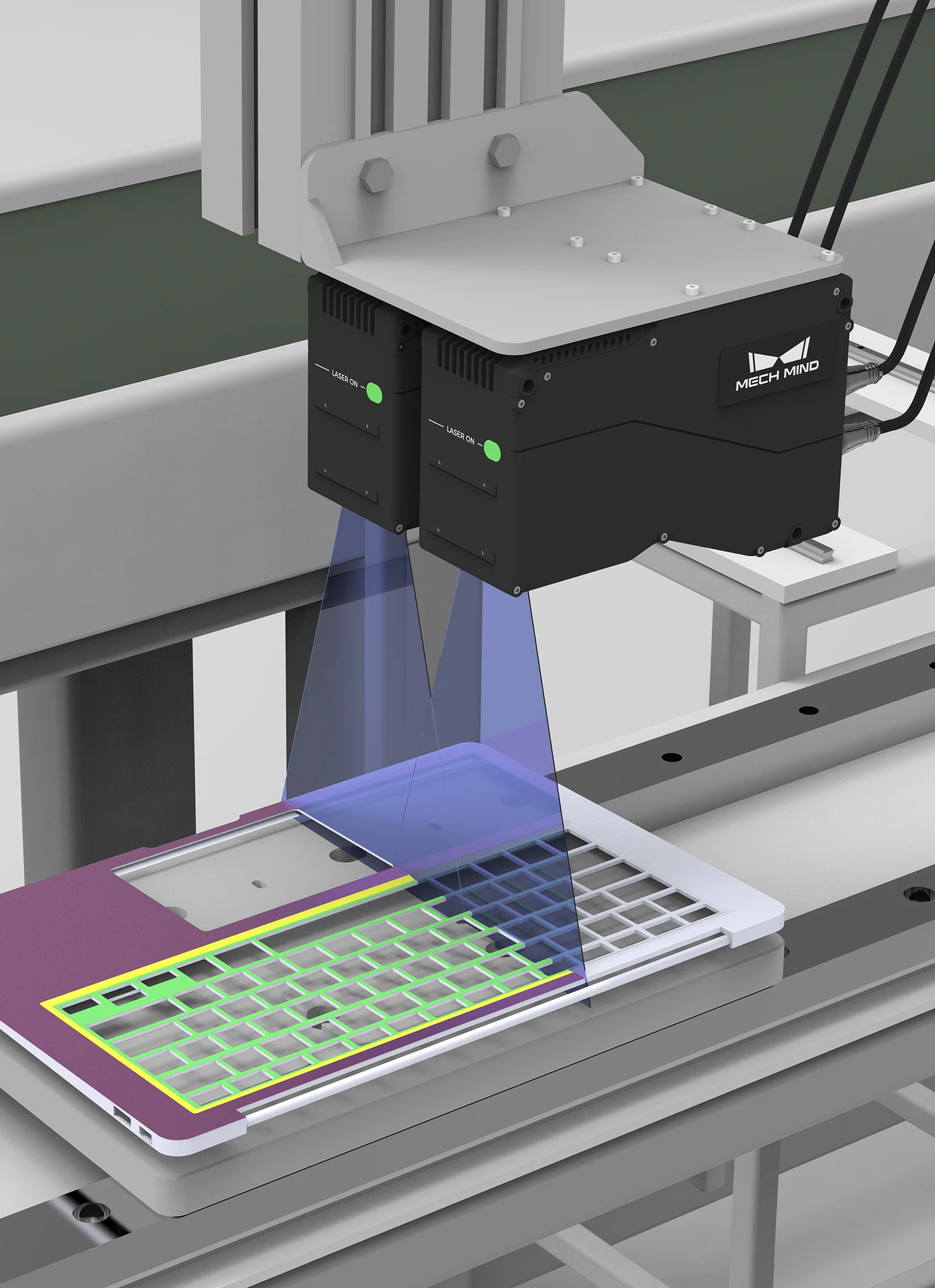

Application scenarios: Inspection and measurement of very fine features (e.g., size, depth, height, and flatness)

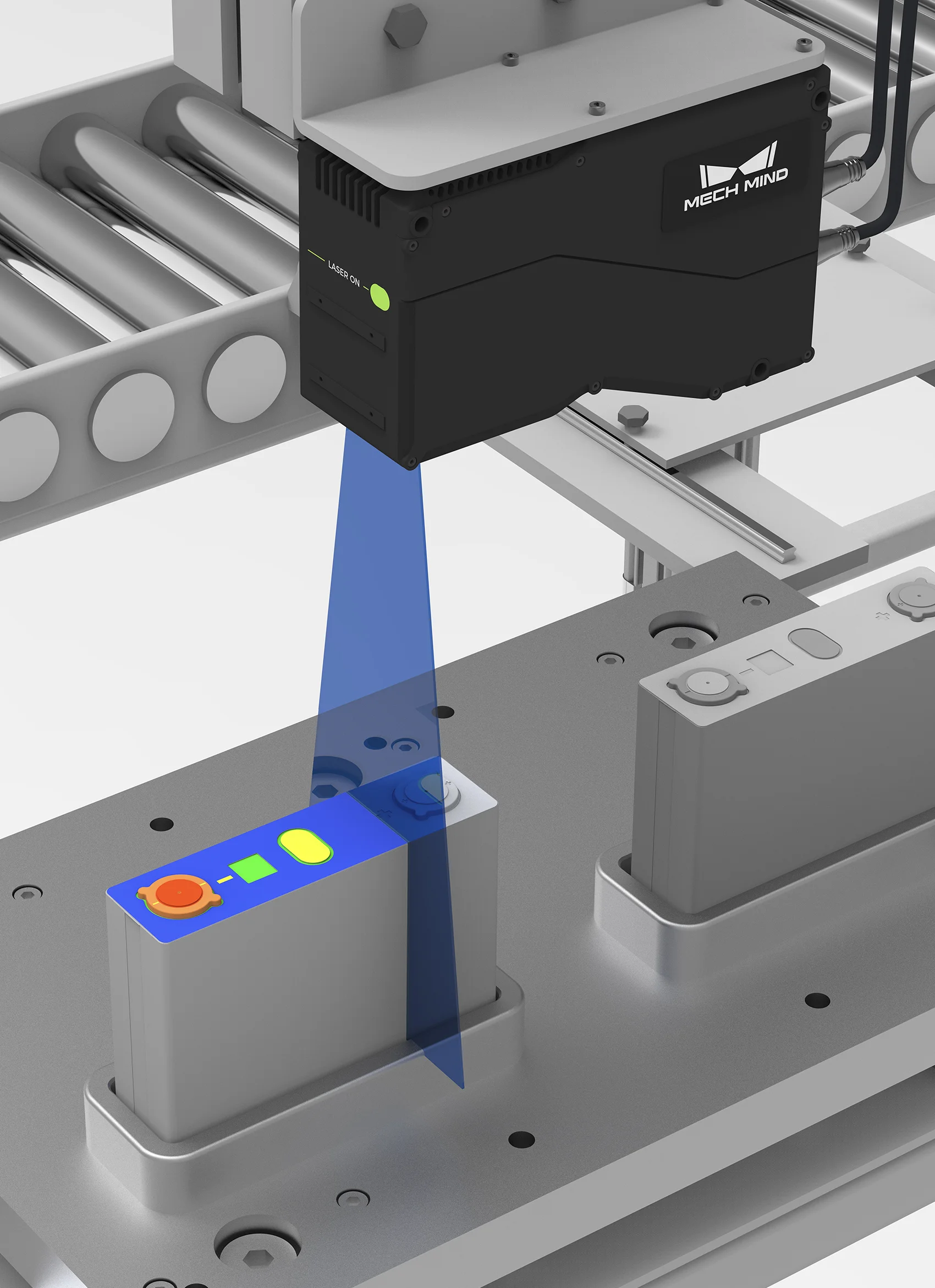

Connector pin inspection	Cap welding inspection	Tire DOT code reading

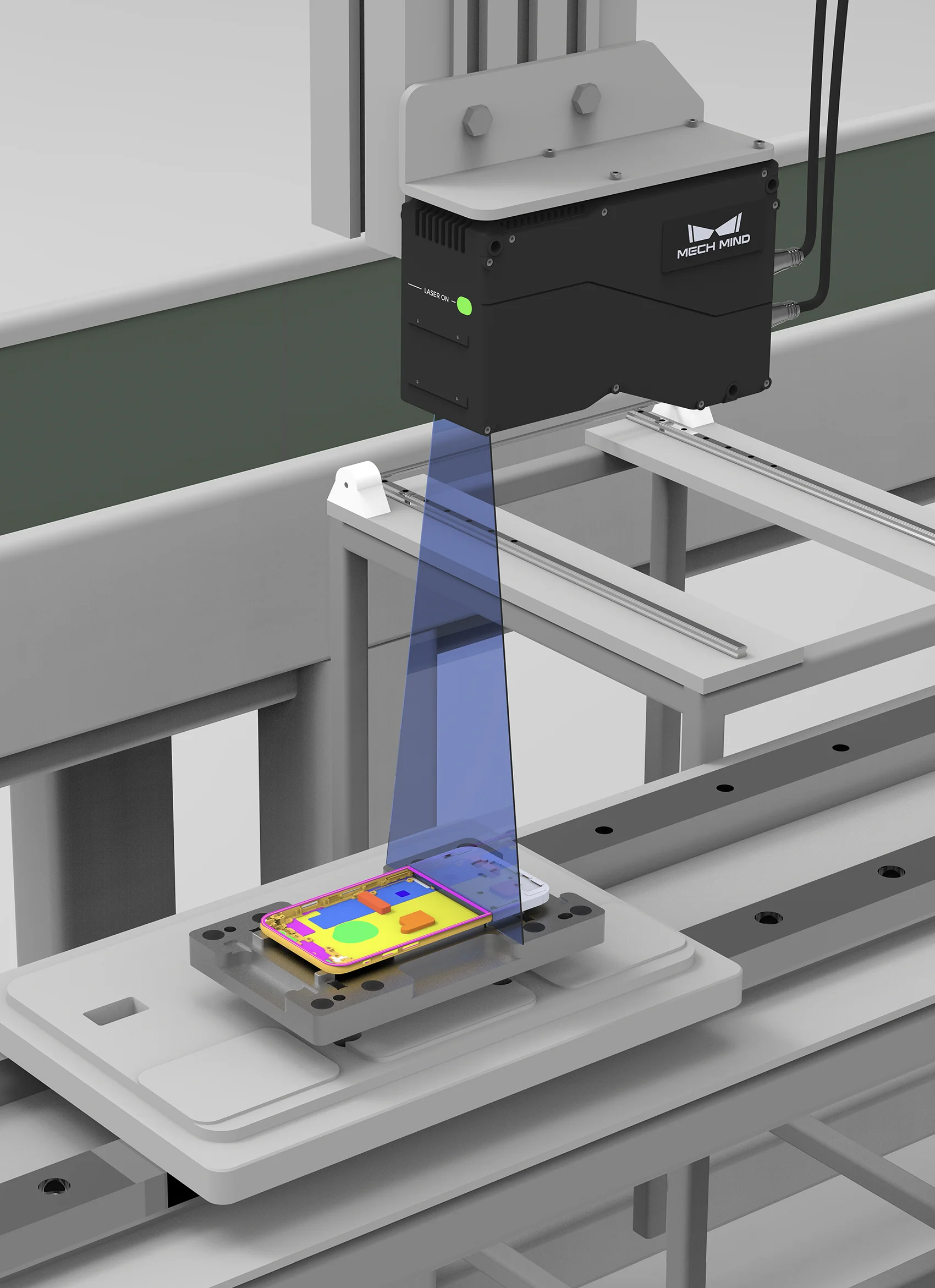

Smartphone midplate flatness measurement	Dimensional measurement of battery modules	Monocrystalline silicon rod diameter inspection

Key Specs

Model		LNX-8030	LNX-8080	LNX-8300	LNX-7530	LNX-7580	LNX-75300
Data Points/Profile		4,096			3,200
Scan Rate		3.3–15 kHz			2-10 kHz
Reference Distance (RD)		78 mm	250 mm	325 mm	78 mm	250 mm	325 mm
Measurement Range Z		30 mm	100 mm	305 mm	25 mm	76 mm	295 mm
Measurement Range X	Near	33 mm	76 mm	230 mm	31 mm	72 mm	219 mm
	RD	35 mm	89 mm	310 mm	33 mm	82 mm	300 mm
	Far	37 mm	96 mm	430 mm	35 mm	89 mm	422 mm
Resolution X		9 µm	23.5 µm	105 µm	11 μm	28 μm	132 μm
Repeatability Z		0.2 µm	0.5 µm	2 µm	0.2 μm	0.5 μm	2 μm
Linearity Z		±0.02% of F.S.
Weight		0.9 kg	1.2 kg	1.2 kg	0.9 kg	1.2 kg	1.2 kg
Dimensions		133 × 61 × 102 mm	182 × 63 × 112 mm	195 × 61 × 109 mm	133 × 61 × 102 mm	182 × 63 × 112 mm	195 × 61 × 109 mm
Laser		Blue (405 nm, Class 2)	Blue (405 nm, Class 2M)		Blue (405 nm, Class 2)	Blue (405 nm, Class 2M)
Lens Inclination		30°	22°	19°	30°	22°	19°
Input Voltage		24V DC
Max. Input Power		48W (25W for sensor head)
Communication Interface		Gigabit Ethernet
Encoder Input		Single-ended and differential encoders supported
Operating Temparature		0–45℃
Safety and EMC		CE/FCC/VCCI/KC/ISED/NRTL
IP Rating		IP67
Cooling		passive

4K+ Resolution	Ultra-High Scan Rates	Micron-Level Precision
4,096* data points per profile for high-resolution 3D inspection of targets (dents, seams, edges, etc.)	Scan rates up to 3.3 kHz* (scan of full FOV) and 15 kHz* (scan of full X measurement range). Advanced optics and algorithms to deliver highly accurate 3D data at a faster speed.	X resolution down to 9 μm*, Z repeatability down to 0.2 μm, and ± 0.02% of F.S. linearity, allowing for the high-precision inspection and measurement of tiny features and defects.
Single-Shot HDR	Ease of Use	Multiple Models
The function makes it possible to scan dark (low reflectivity) and reflective (high reflectivity) surfaces in one exposure while creating complete point clouds.	Extensible interface for image acquisition, including C++/C#/Python API. Compliant with GenICam3.0 and GigE Vision standards.	A cutting-edge lineup designed for inspection and measurement in various scenarios across industries.
		* Applicable to LNX-8000 series

Point Cloud Examples


Sealing pin Point cloud obtained by Mech-Eye LNX-8030	Smartphone midplate Point cloud obtained by Mech-Eye LNX-8080	Tire DOT code Point cloud obtained by Mech-Eye LNX-8300

Connector pins Point cloud obtained by Mech-Eye LNX-7530	Battery cell lid Point cloud obtained by Mech-Eye LNX-7580	Battery module Point cloud obtained by Mech-Eye LNX-75300
	Color rendered by height

Applications

Industries: Consumer electronics, EV battery, semiconductor, home appliances, and the automotive industry
Application scenarios: Inspection and measurement of very fine features (e.g., size, depth, height, and flatness)


Connector pin inspection	Cap welding inspection	Tire DOT code reading

Smartphone midplate flatness measurement	Dimensional measurement of battery modules	Monocrystalline silicon rod diameter inspection

Key Specs

Model		LNX-8030	LNX-8080	LNX-8300	LNX-7530	LNX-7580	LNX-75300
Data Points/Profile		4,096			3,200
Scan Rate		3.3–15 kHz			2-10 kHz
Reference Distance (RD)		78 mm	250 mm	325 mm	78 mm	250 mm	325 mm
Measurement Range Z		30 mm	100 mm	305 mm	25 mm	76 mm	295 mm
Measurement Range X	Near	33 mm	76 mm	230 mm	31 mm	72 mm	219 mm
	RD	35 mm	89 mm	310 mm	33 mm	82 mm	300 mm
	Far	37 mm	96 mm	430 mm	35 mm	89 mm	422 mm
Resolution X		9 µm	23.5 µm	105 µm	11 μm	28 μm	132 μm
Repeatability Z		0.2 µm	0.5 µm	2 µm	0.2 μm	0.5 μm	2 μm
Linearity Z		±0.02% of F.S.
Weight		0.9 kg	1.2 kg	1.2 kg	0.9 kg	1.2 kg	1.2 kg
Dimensions		133 × 61 × 102 mm	182 × 63 × 112 mm	195 × 61 × 109 mm	133 × 61 × 102 mm	182 × 63 × 112 mm	195 × 61 × 109 mm
Laser		Blue (405 nm, Class 2)	Blue (405 nm, Class 2M)		Blue (405 nm, Class 2)	Blue (405 nm, Class 2M)
Lens Inclination		30°	22°	19°	30°	22°	19°
Input Voltage		24V DC
Max. Input Power		48W (25W for sensor head)
Communication Interface		Gigabit Ethernet
Encoder Input		Single-ended and differential encoders supported
Operating Temparature		0–45℃
Safety and EMC		CE/FCC/VCCI/KC/ISED/NRTL
IP Rating		IP67
Cooling		passive
