High-quality industrial 3D vision enables robots to accurately perceive, understand, and interact with the physical world. Yet real-world manufacturing and logistics environments continue to present major challenges for robot vision. Sub-1 mm thin parts and transparent materials are difficult to reconstruct reliably with industrial 3D cameras, while increasingly demanding cycle times leave little room for lengthy image acquisition.
To address these challenges, Mech-Mind launches Mech-Eye ULTRA M-GL, its flagship industrial 3D camera with high resolution and high speed as well as the latest addition to the company's embodied AI “Eye-Brain-Hand” portfolio.
Powered by Mech-Mind's proprietary optical technologies and advanced AI-powered imaging algorithms, the Mech-Eye ULTRA M-GL industrial 3D camera combines ultra-high-resolution 3D imaging with image acquisition in as little as 0.08 s. This industrial 3D camera enables robots to precisely detect thin parts less than 1 mm thick, reliably recognize transparent objects, and keep pace with demanding throughput requirements of high-speed applications — expanding the possibilities for robotic automation in challenging industrial environments.

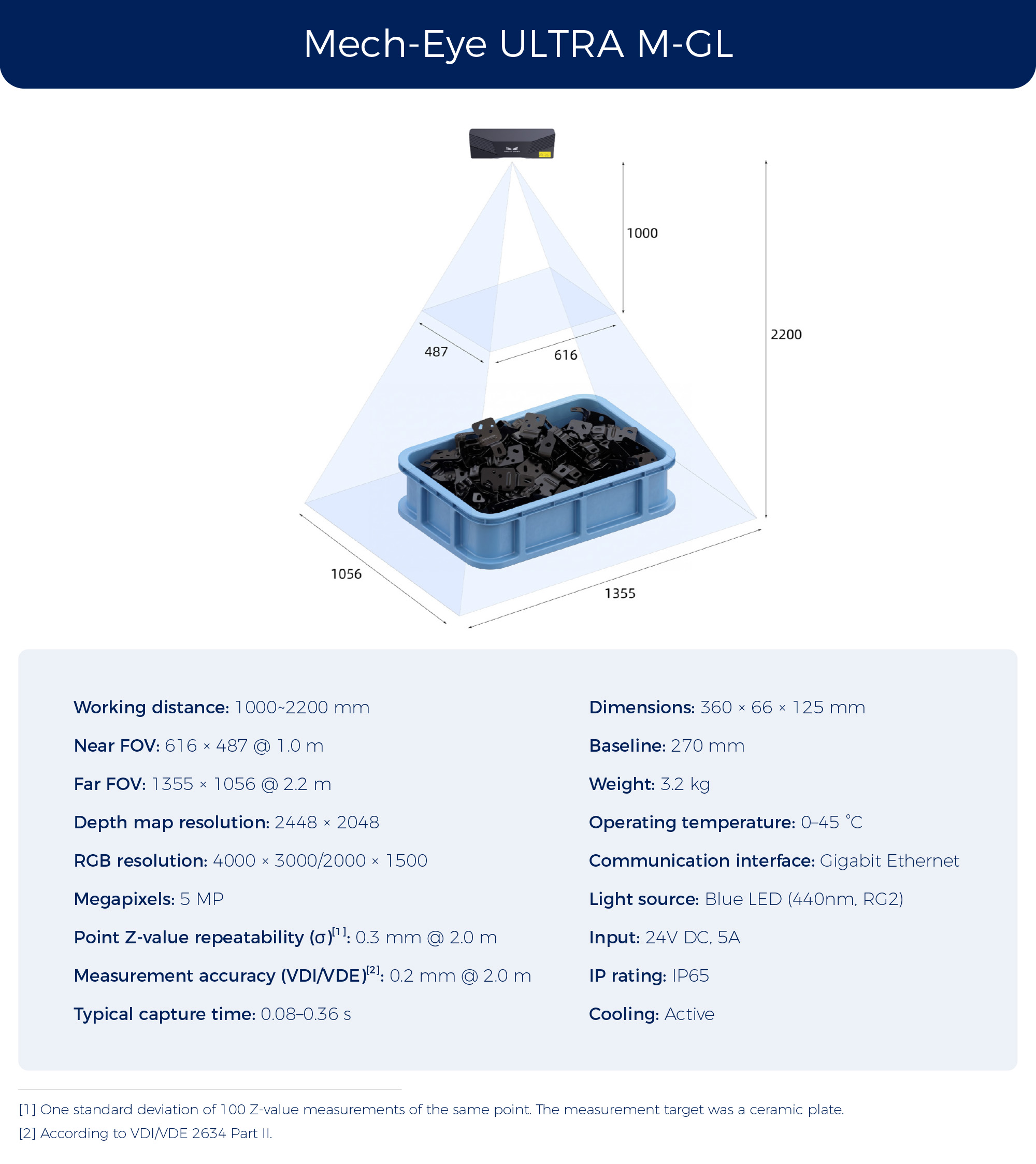

Field of View & Specifications
High-Precision Imaging for Sub-1 mm Thin Parts
Enabling Reliable Bin Picking of Ultra-Thin Automotive Sheet Metal Parts

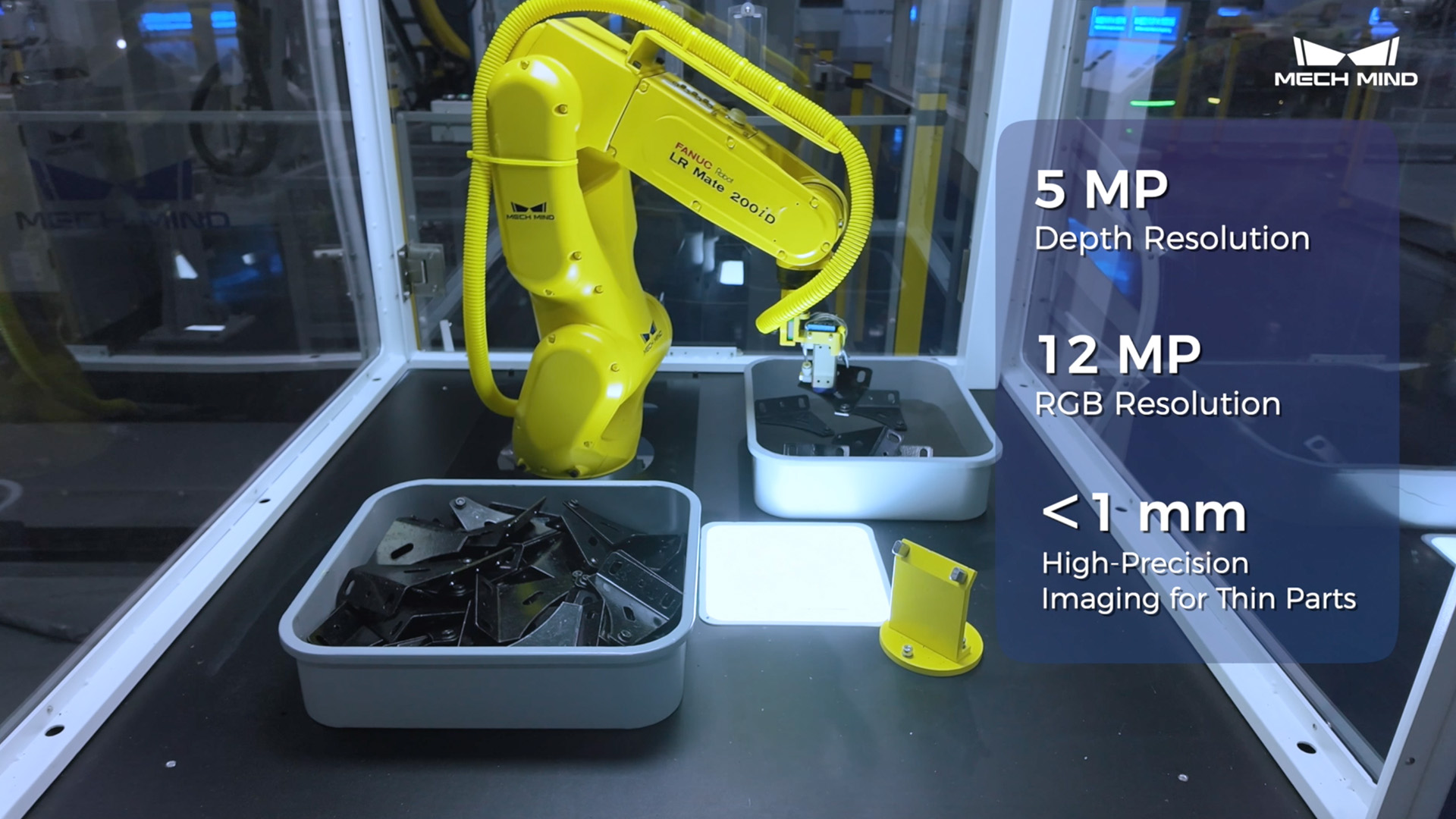

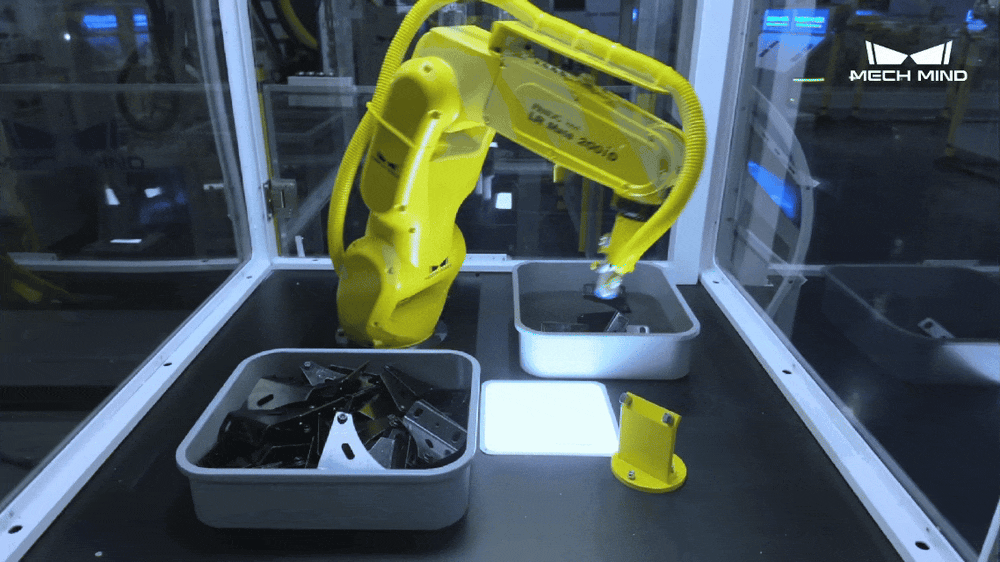

Typical Application: Random Bin Picking of Ultra-Thin Automotive Sheet Metal Parts
Random bin picking of ultra-thin automotive sheet metal parts remains one of the most challenging applications for industrial 3D camera and robotic automation. These parts are typically less than 1 mm thick, densely stacked in random orientations, and often feature highly reflective surfaces and irregular shapes. These characteristics make reliable 3D reconstruction particularly difficult, increasing the risk of missed detections and failed picks.
Mech-Eye ULTRA M-GL addresses these challenges with proprietary high-performance optics and advanced AI-powered imaging algorithms. This industrial 3D camera delivers 5 MP depth resolution and 12 MP RGB resolution, generating high-fidelity 3D point clouds of ultra-thin parts with exceptional detail. Even subtle features — including small holes, sharp edges, and surface warpage — can be reconstructed with high accuracy, providing reliable 3D data for robot guidance and pose estimation.

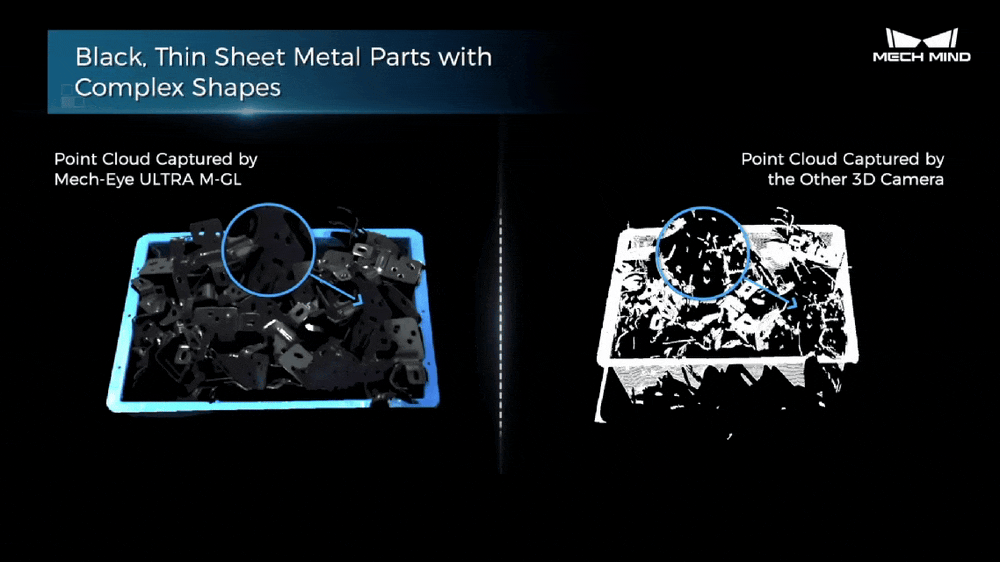

Comparison of 3D point clouds for densely stacked ultra-thin & irregular sheet metal parts.

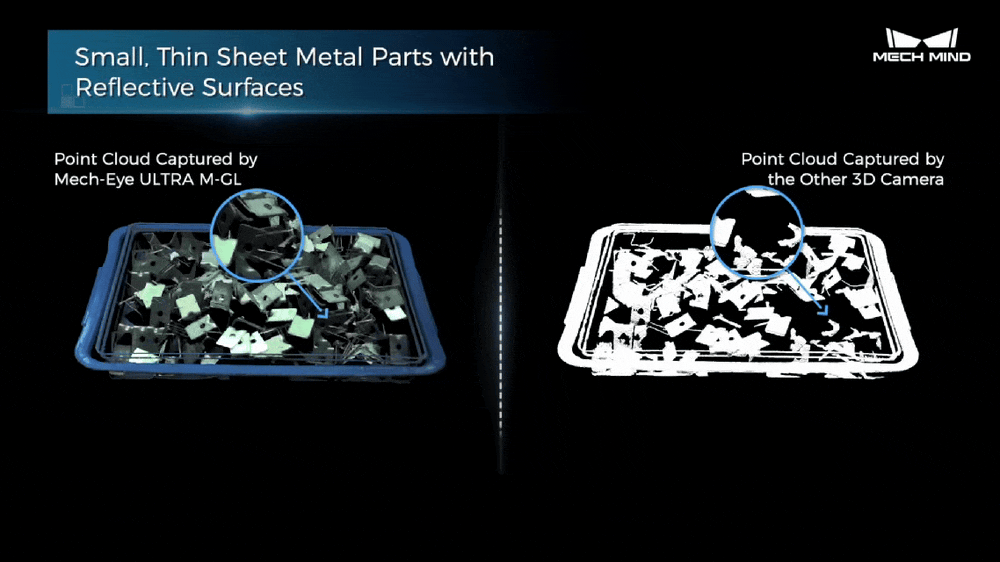

Comparison of 3D point clouds for ultra-thin & black-painted reflective sheet metal parts.
More precise 3D data improves recognition accuracy and picking success rates for ultra-thin parts, allowing manufacturers to automate random bin picking applications that have traditionally relied on manual handling while improving productivity and reducing labor costs.
Advanced 3D Capture of Transparent Objects
Enabling Reliable Robotic Picking in Retail and Medical Applications
Typical Application: Generalized Picking of Transparent Objects

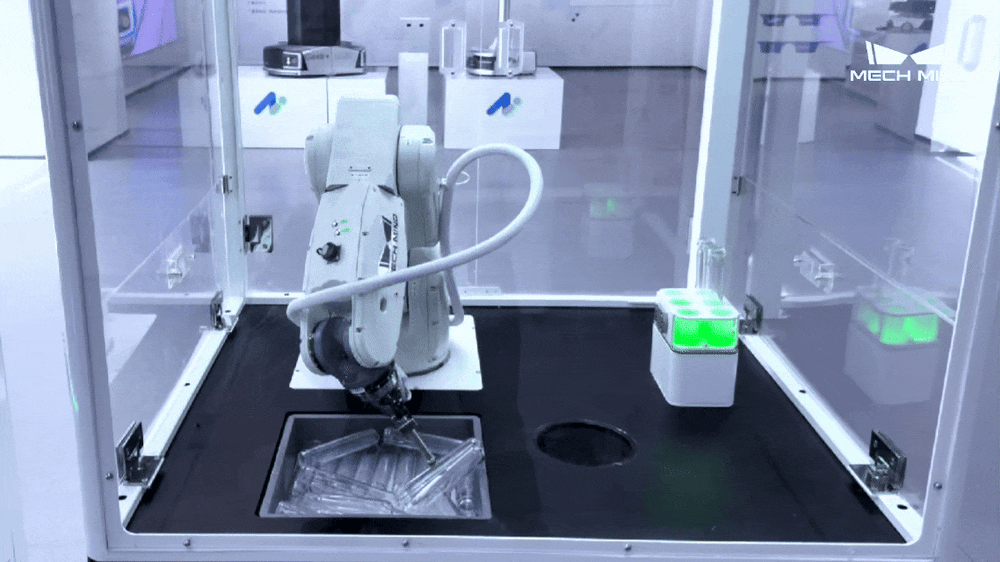

Typical Application: High-Speed, High-Precision Sorting of Transparent Test Tubes
Transparent objects have long been among the most difficult targets for industrial 3D camera and robot vision systems. Optical effects such as weak and multipath reflections often result in missing or distorted 3D data, preventing reliable object recognition.
The Mech-Eye ULTRA M-GL industrial 3D camera combines dedicated transparent-object imaging algorithms with specialized optics to reduce these artifacts. It generates more complete, high-contrast 3D point clouds across a wide range of transparent and translucent objects, including retail goods, medical supplies, and automotive components.

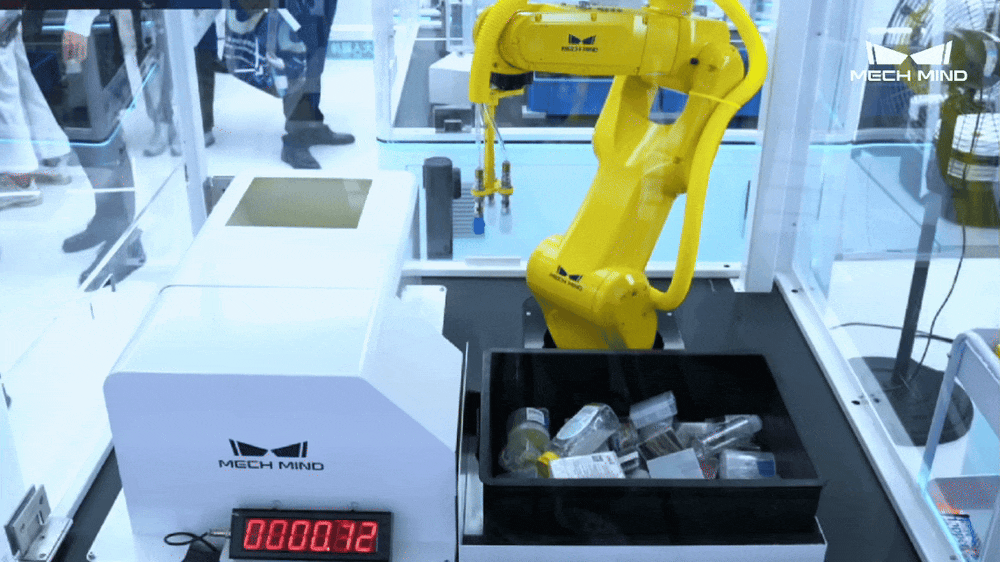

By improving 3D imaging quality for transparent materials, Mech-Eye ULTRA M-GL enables reliable transparent object picking across retail distribution, pharmaceutical logistics, and automotive manufacturing — opening up applications that have traditionally been difficult to automate.

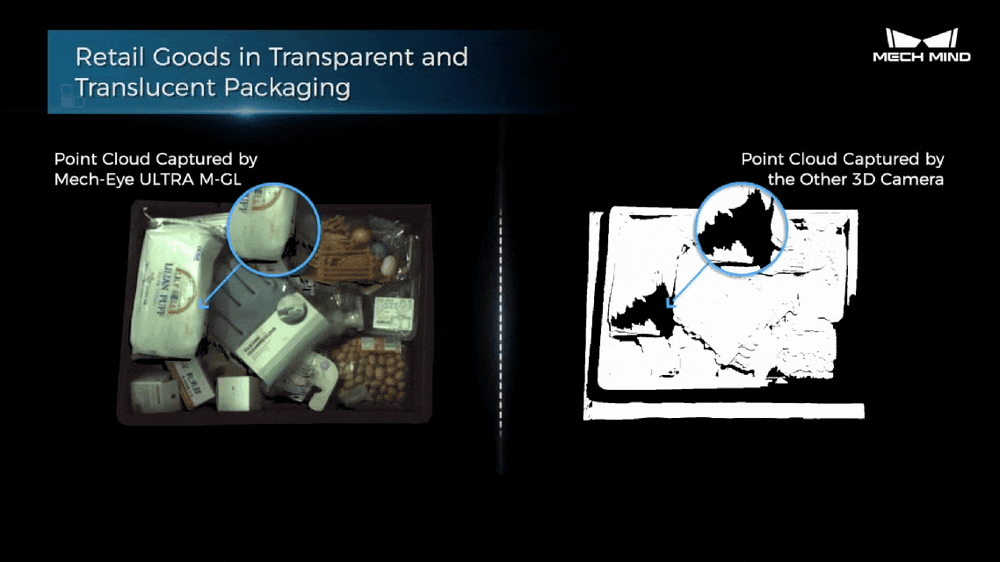

Comparison of 3D point clouds for transparent & translucent packaged retail goods.

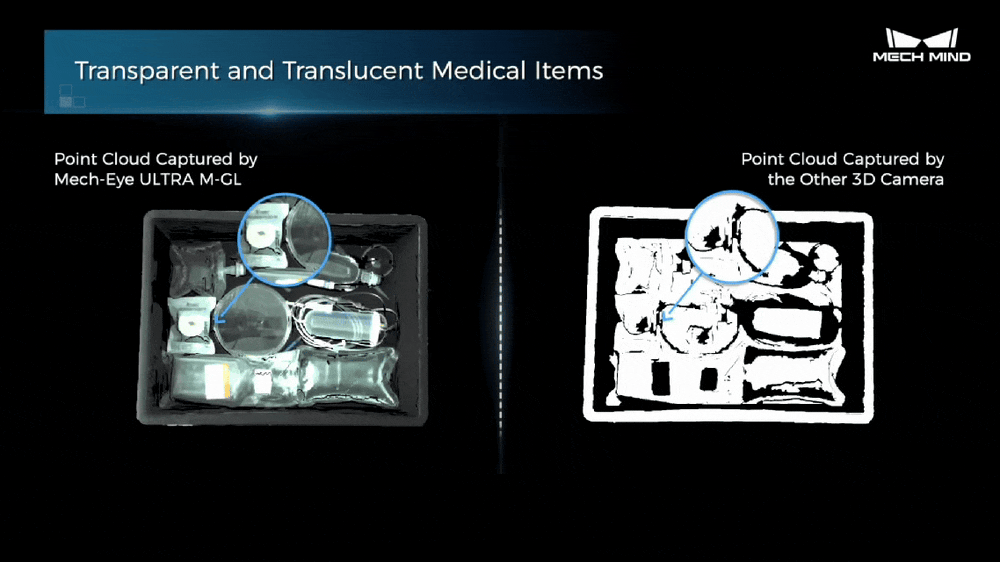

Comparison of 3D point clouds for transparent & translucent medical supplies.

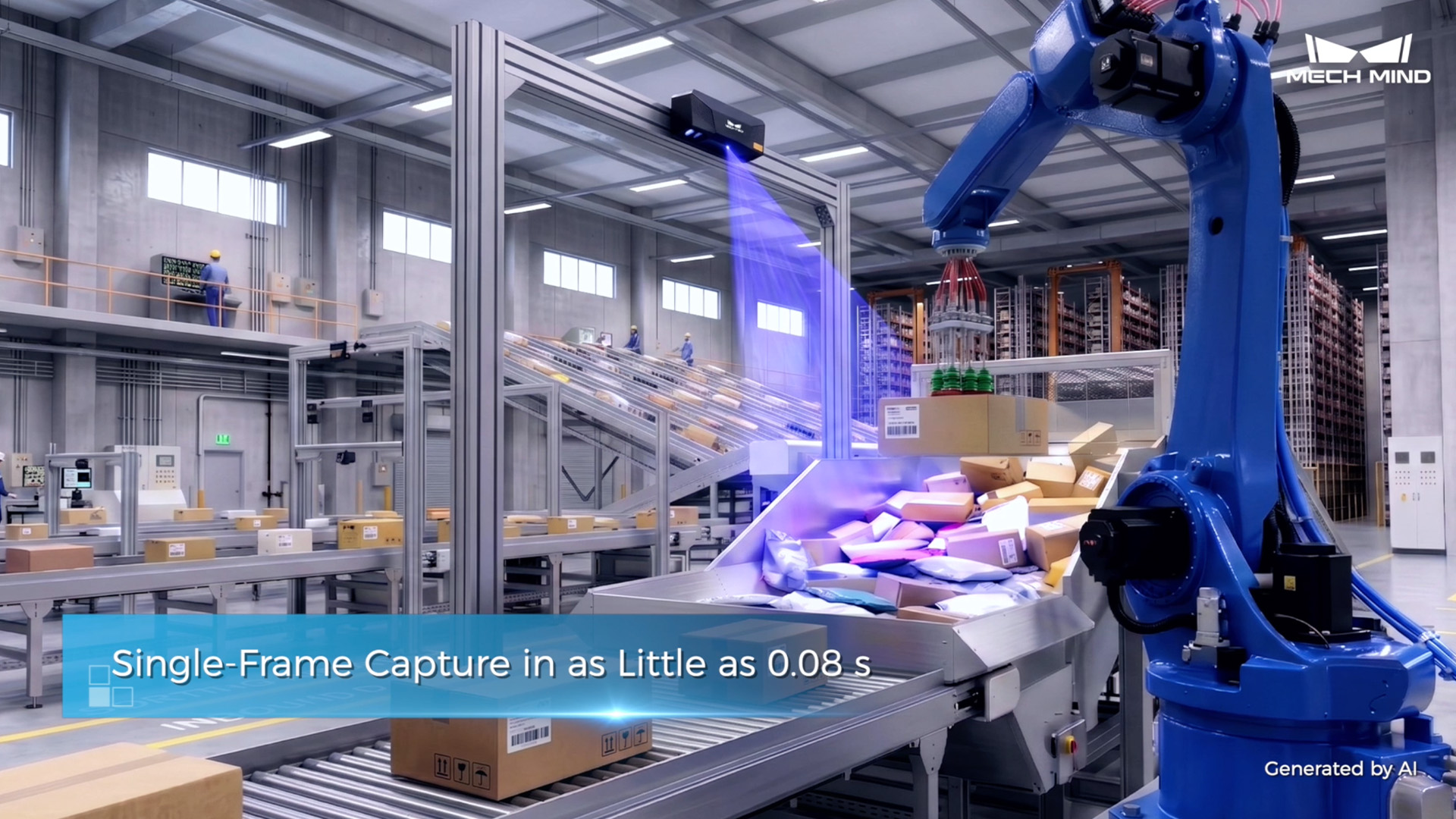

Ultra-Fast Scanning as Fast as 0.08 s
Built for High-Speed Parcel Induction, Piece Picking, and Other High-Throughput Applications
High-throughput robotic applications such as parcel induction and piece picking require exceptionally short vision cycle times. In parcel induction, for example, a single workstation may process up to 1,800 parcels per hour, leaving little time for 3D image acquisition and robot guidance.

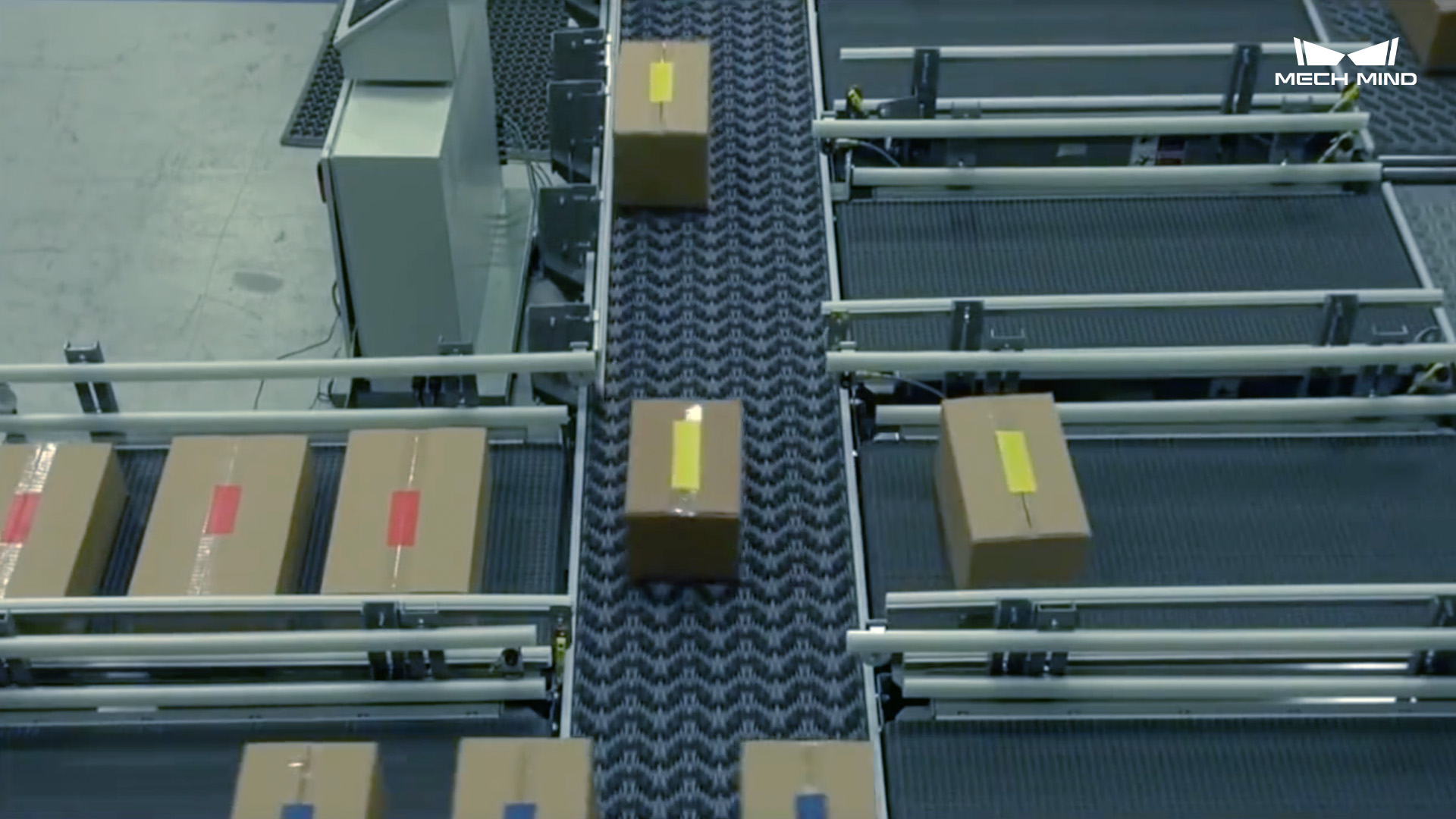

Parcel Induction in a Real-World Logistics Environment
Leveraging optimized optical design and advanced image processing algorithms, the Mech-Eye ULTRA M-GL industrial 3D camera achieves image acquisition in as little as 0.08 s — up to 4× faster than the previous generation.
Shorter acquisition times help robot vision systems meet demanding throughput targets without compromising picking reliability. In parcel induction and warehouse piece picking, the Mech-Eye ULTRA M-GL helps operators increase throughput, shorten cycle times, and achieve a faster return on their automation investment.
Adaptive Flicker Suppression for Stable 3D Vision
Enabling Reliable 3D Imaging Around Barcode Scanners, Code Readers, and LED Lighting
Real production environments often present complex lighting conditions, including high-frequency flicker from LED lighting, barcode scanners, code readers, and other industrial equipment. This interference can introduce image artifacts and destabilize 3D data, reducing recognition accuracy and potentially disrupting production.

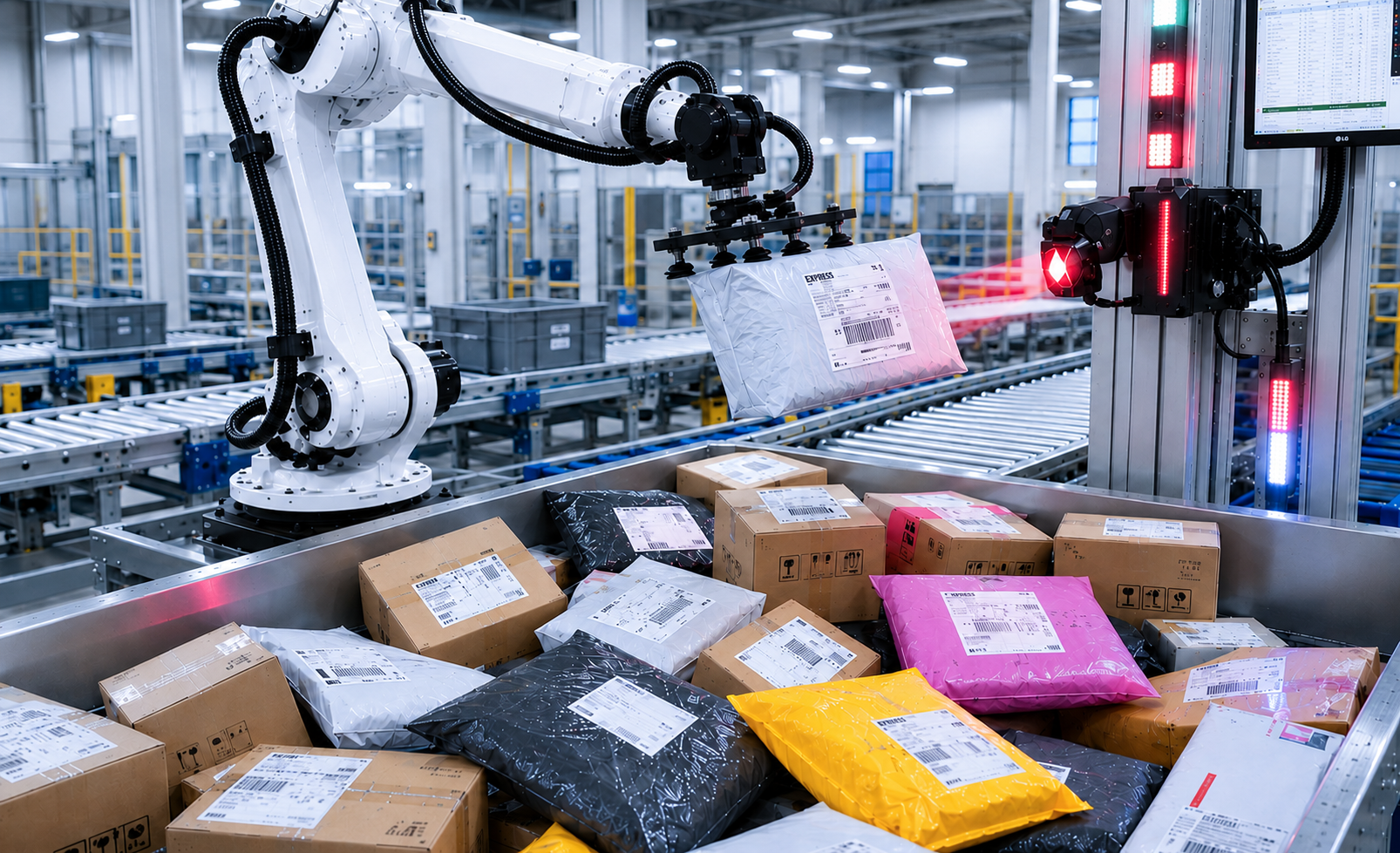

Typical Flicker Sources in Parcel Induction Applications
Mech-Eye ULTRA M-GL features adaptive anti-flicker algorithms that effectively suppress high-frequency flicker interference. Even under challenging lighting conditions, this industrial 3D camera maintains stable, high-quality 3D data without slowing image acquisition, supporting reliable robotic operation and reducing production interruptions.

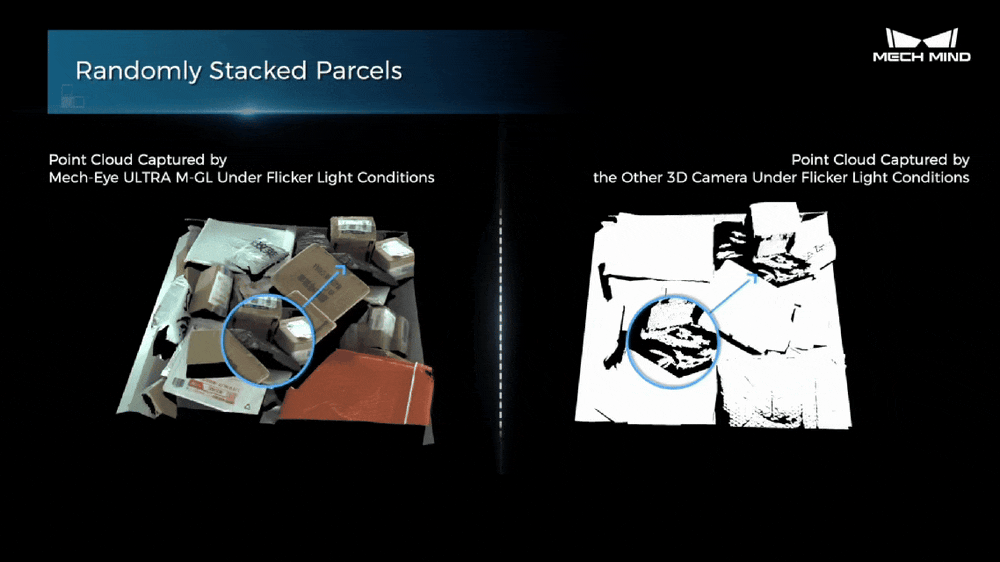

Comparison of 3D Point Clouds for Real-World Parcels
Industrial Reliability for Production Environments

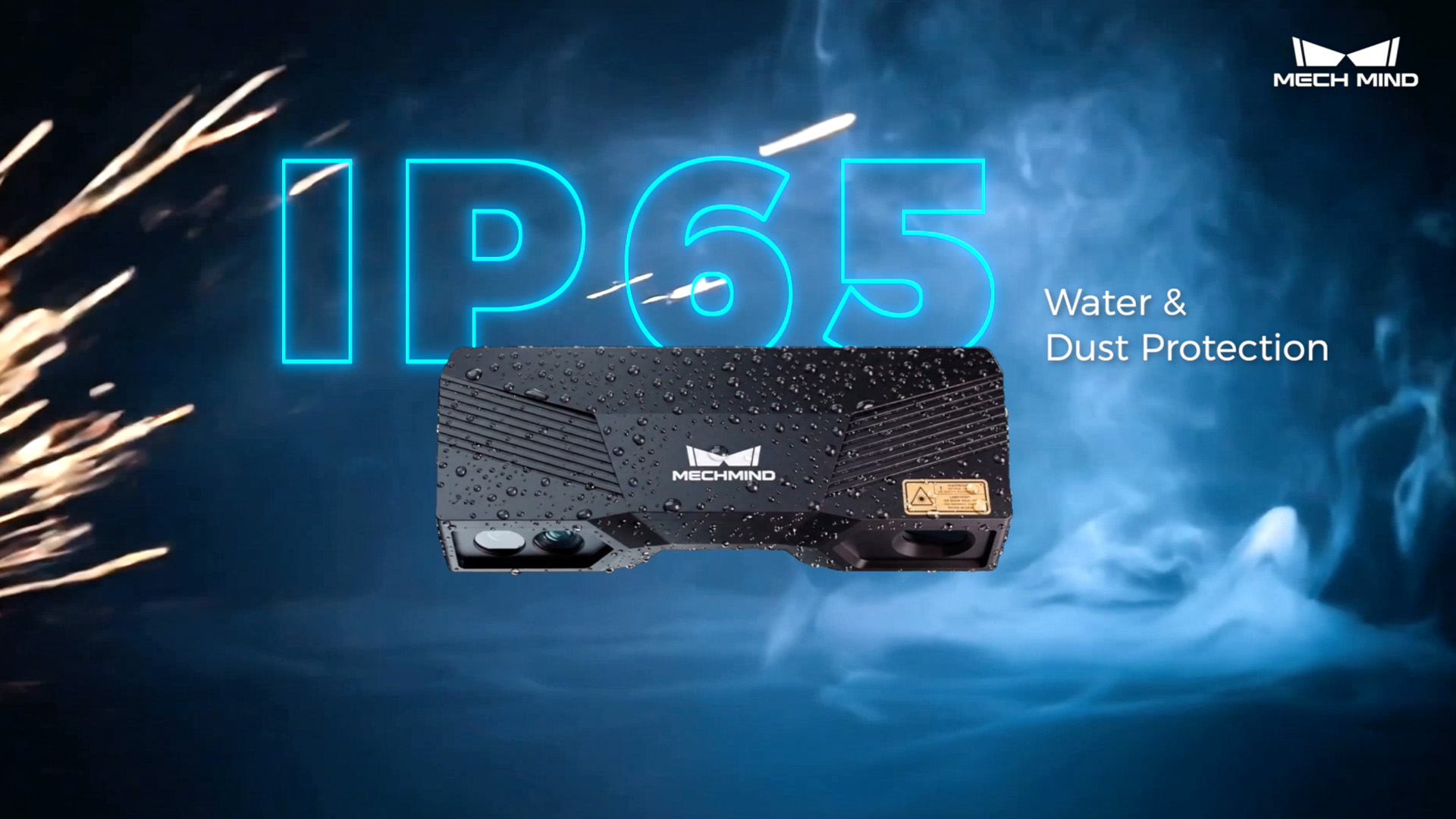

The Mech-Eye ULTRA M-GL is engineered for demanding production environments. It meets CE, FCC, VCCI, KC, ISED, NRTL, and RoHS requirements and features an IP65-rated enclosure. Designed to withstand dust, moisture, vibration, and electromagnetic interference, this rugged industrial 3D camera supports reliable long-term operation with less downtime and maintenance.
Easy Integration into Automation Systems
Multi-language, cross-platform SDKs, support for GenICam and GigE Vision, and compatibility with MVTec HALCON simplify integration with existing robot vision and automation systems. This helps reduce engineering effort and accelerate project deployment.
Expanding Industrial 3D Vision for Robotic Automation
From random bin picking of ultra-thin automotive sheet metal parts to transparent object picking in retail, medical, and manufacturing, as well as high-speed parcel induction and retail piece picking, the Mech-Eye ULTRA M-GL industrial 3D camera delivers the speed, accuracy, and reliability required for demanding robotic applications.
As the latest flagship addition to Mech-Mind's embodied AI "Eye-Brain-Hand" portfolio, Mech-Eye ULTRA M-GL strengthens the company's integrated robot vision offering and gives system integrators and automation partners greater flexibility to address complex applications. With more than 27,000 Eye + Brain units deployed across nearly 50 countries and regions, Mech-Mind continues to advance robot vision through innovation in hardware and software — making robotic automation more capable, more reliable, and easier to deploy across industries worldwide.
