In today’s world of technology, facilities are automating various processes to enhance their efficiency and reliability. Machine tending is one process that has seen a radical change in technology adoption.
In today’s world of technology, facilities are automating various processes to enhance their efficiency and reliability. Machine tending is one process that has seen a radical change in technology adoption.
Mech-Eye Industrial 3D Cameras

Mech-Eye Industrial 3D Cameras

High resolution & high accuracy & detail-rich 3D images of a wide variety of objects. Wide model options designed to satisfy diverse practical needs (ambient light resistance, high accuracy, high scanning speed, small size, etc.).

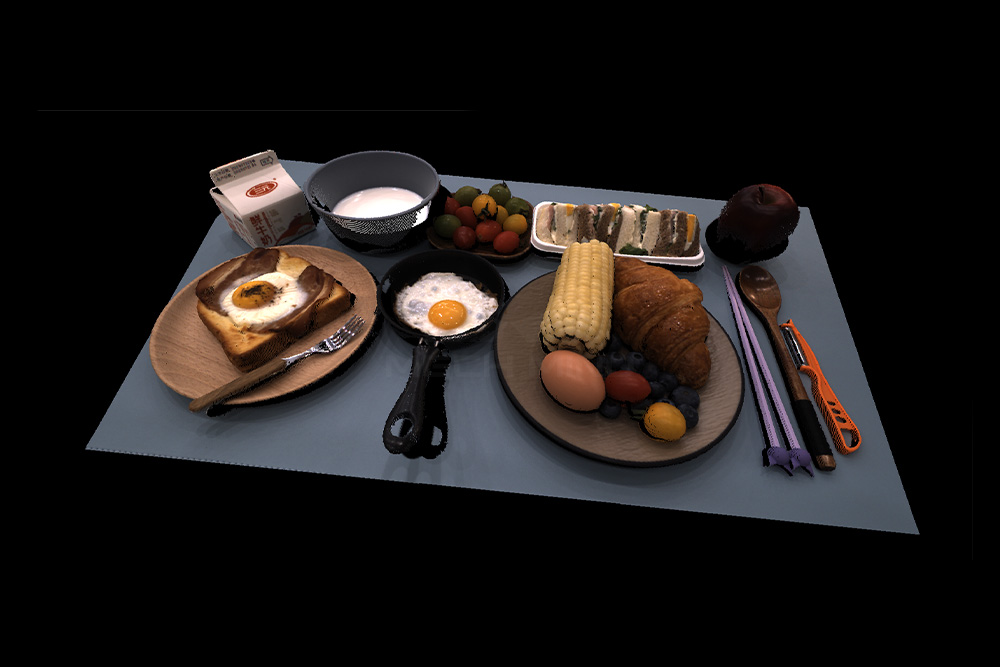

Typical Point Clouds

    Rugged Aluminum Alloy Housing
    Rugged Aluminum Alloy Housing
    High Accuracy & Resolution 3D Images
    High Accuracy & Resolution 3D Images
    Dust and Water Proof
    Dust and Water Proof
    Reliable Scanning Performance
    Reliable Scanning Performance
    Easy Setup and Fast Deployment
    Easy Setup and Fast Deployment
    Multiple Model Options
    Multiple Model Options

Product Advantages

    Rugged Aluminum Alloy Housing
    Rugged Aluminum Alloy Housing

    Mech-Eye industrial 3D camera has an rugged aluminum alloy housing built to last on the factory floor.
    High Accuracy & Resolution 3D Images
    High Accuracy & Resolution 3D Images

    Mech-Eye industrial 3D cameras can generate highly accurate and detailed 3D images of a wide variety of objects.
    Dust and Water Proof
    Dust and Water Proof

    Mech-Eye industrial 3D camera is IP65-rated and CE, FCC, VCCI, UKCA, KC, ISED, NRTL, and RoHS certified. It can operate long in harsh environments with dust, vibration, humidity, electromagnetic interference, and high temperature.
    Reliable Scanning Performance
    Reliable Scanning Performance

    Mech-Eye industrial 3D camera is reliable and durable, with a certified MTBF of ≥ 100,000 hours. It delivers reliable scanning performance, even in complex scenarios.
    Easy Setup and Fast Deployment
    Easy Setup and Fast Deployment

    Mech-Eye industrial 3D camera is easy setup, reducing typical vision deployment times. It also offers flexible mounting applications, quickly adapting to your production layout.
    Multiple Model Options
    Multiple Model Options

    Multiple models respond to your diverse needs and manage a broad range of robotic applications, from bin picking, piece picking, and assembly to quality inspection.

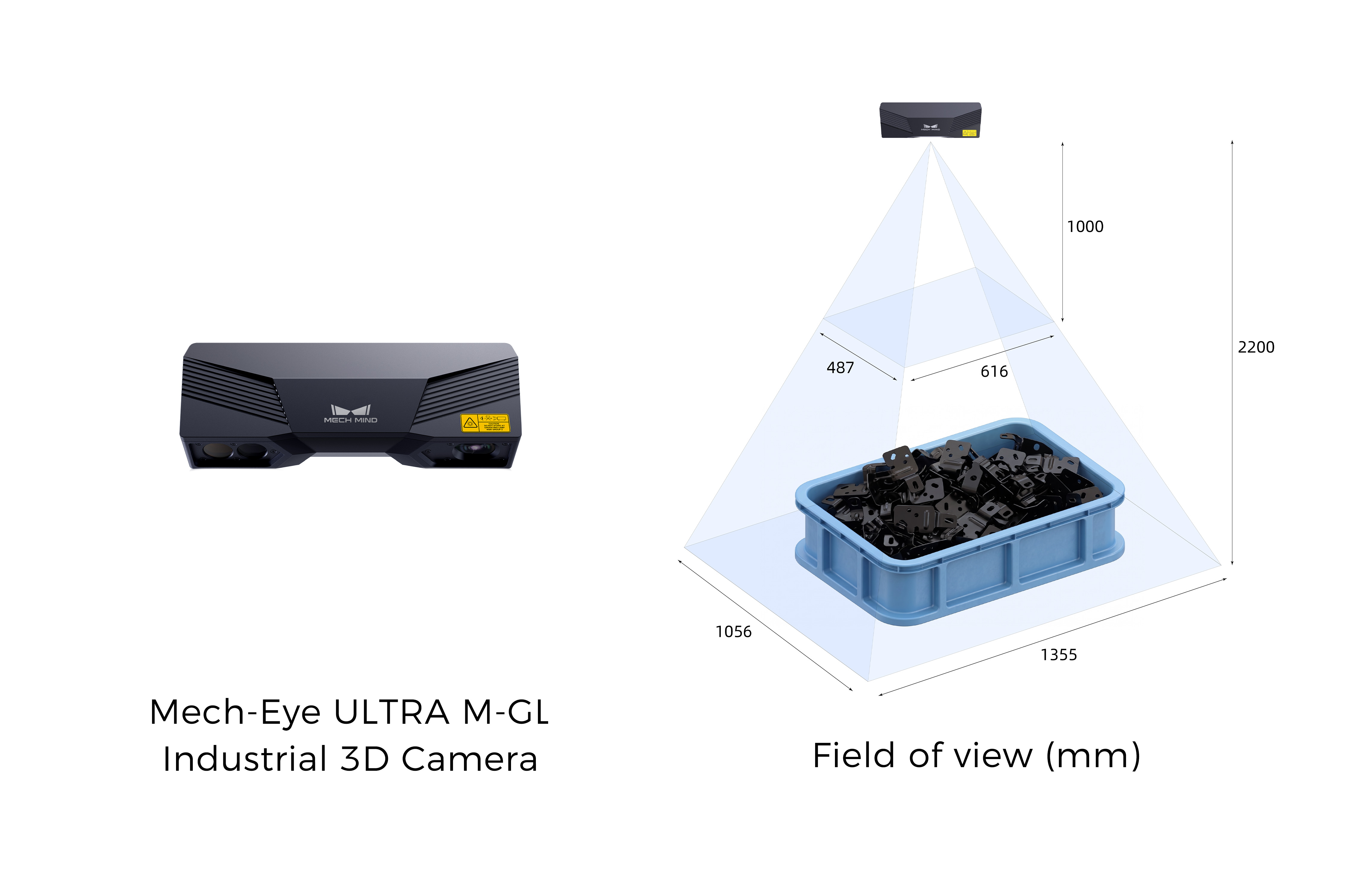

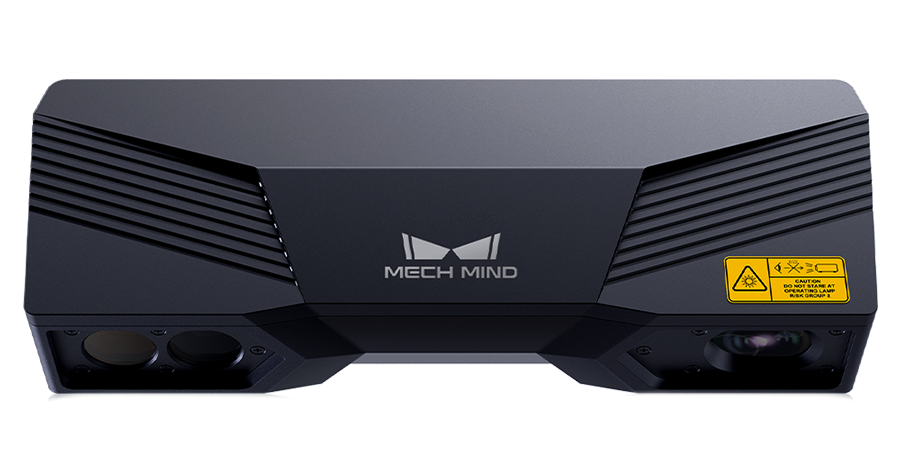

Mech-Eye Industrial 3D Cameras
  • Mech-Eye LSR L-GL Industrial 3D Camera

    - Large FOV

    - Ambient light resistance

    - Robust interreflection suppression

    - Ideal for robotic guidance


  • Mech-Eye LSR S-GL Industrial 3D Camera

    - High accuracy

    - Small size

    - Strong resistance to ambient light

    - For medium-range outdoor applications

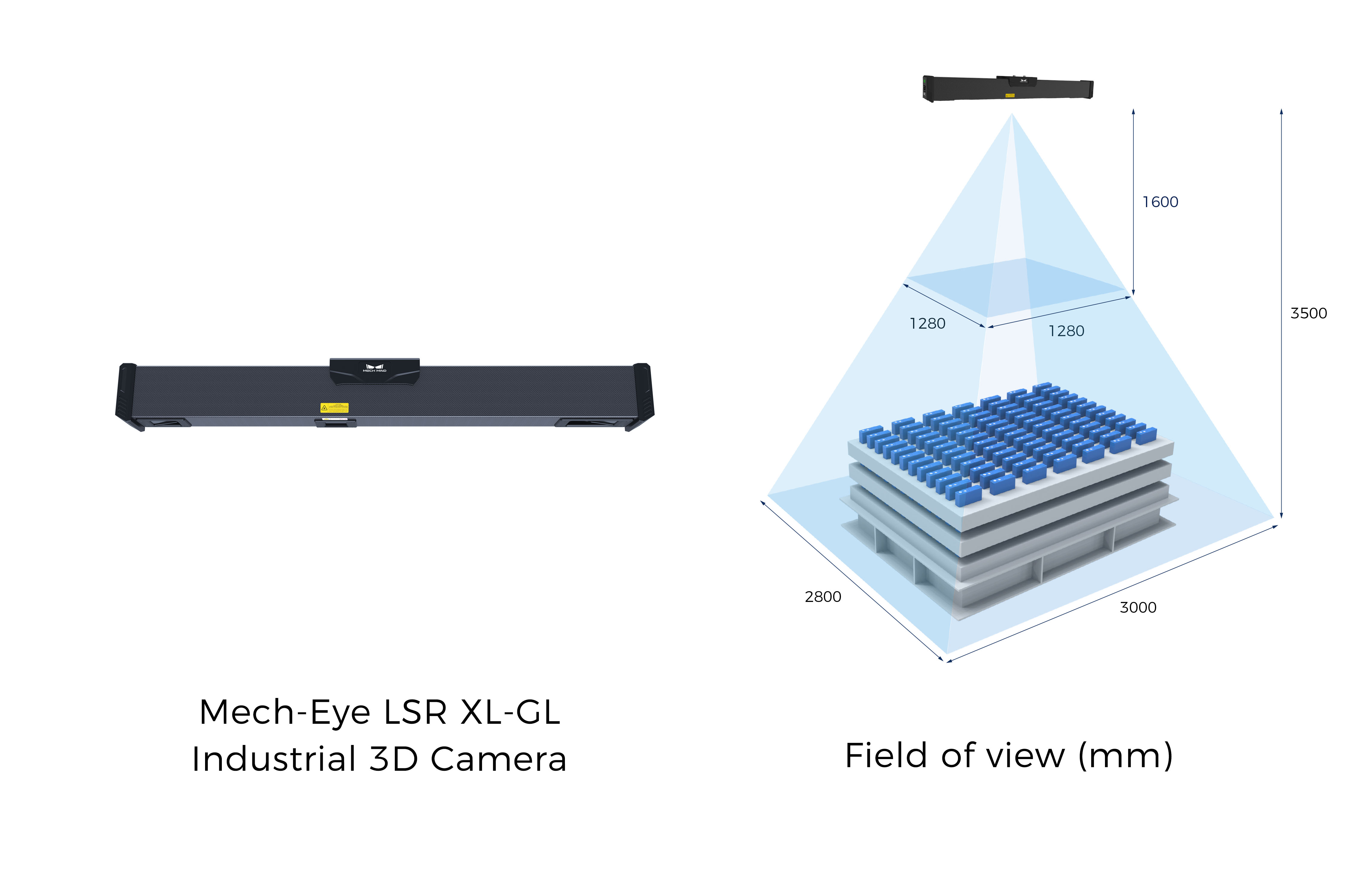

  • Mech-Eye LSR XL-GL Industrial 3D Camera

    - Ultra-high resolution

    - Extensive scanning range

    - Exceptional anti-reflection capability

    - Robust resistance to ambient light

    - Designed for high-precision applications at long working distances

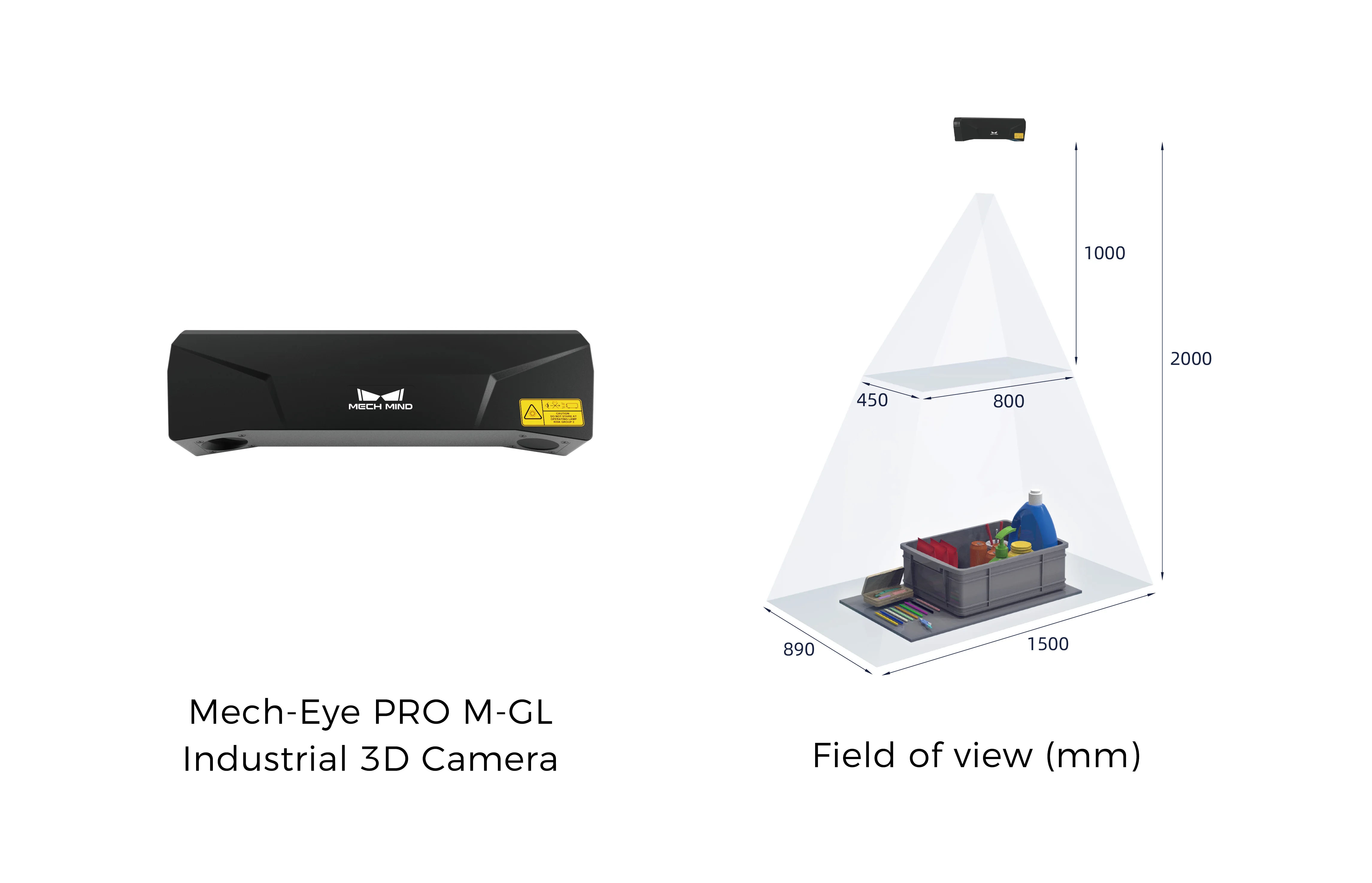

  • Mech-Eye PRO M-GL Industrial 3D Camera

    - High accuracy

    - Extended FOV

    - Detail-rich 3D point clouds

    - Rapid image acquisition

    - Designed for medium-range robotic applications

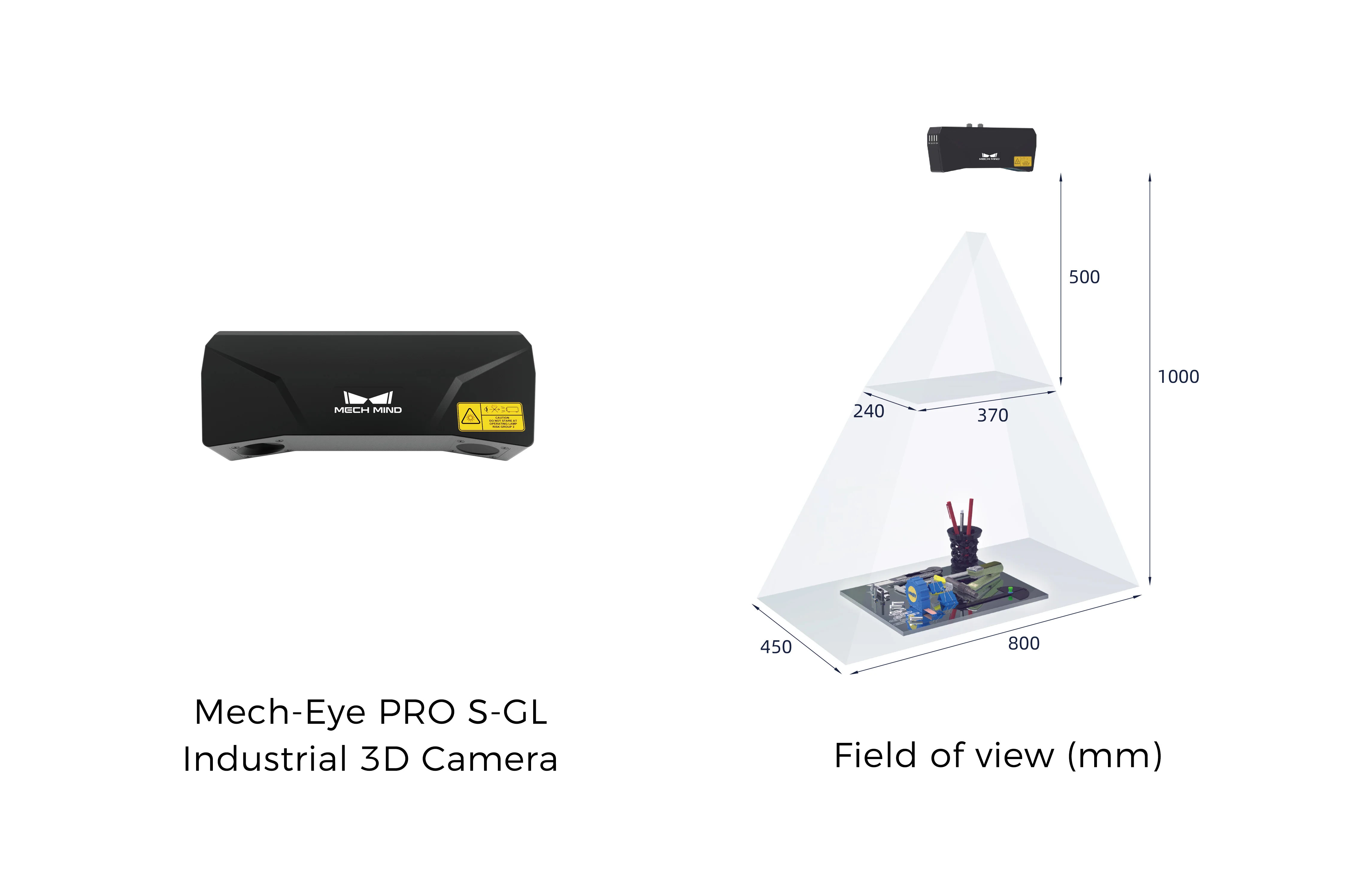

  • Mech-Eye PRO S-GL Industrial 3D Camera

    - High accuracy

    - Detail-rich 3D point clouds

    - Rapid image acquisition

    - Designed for short- and medium-range applications

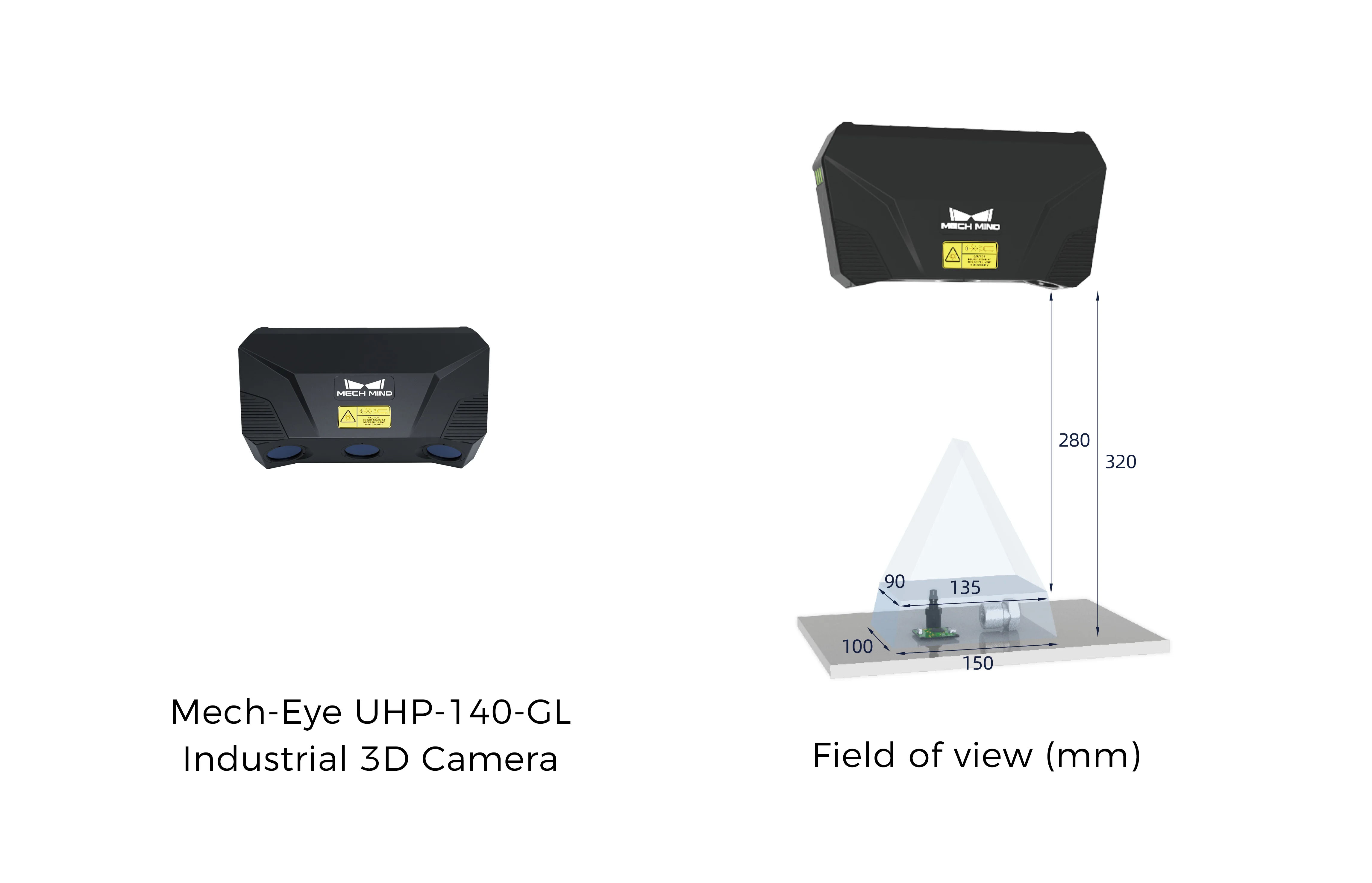

  • Mech-Eye UHP-140-GL Industrial 3D Camera

    - Micron-level accuracy

    - Robust anti-reflection performance

    - Compact & lightweight design

    - Suitable for demanding inspection & measurement applications

  • Mech-Eye NANO-GL Industrial 3D Camera

    - Ultra-small size

    - Ultra-high precision

    - Fast scanning

    - Ambient light resistance

    - Designed for high-precision scenarios (high-precision localization, assembly, etc.)

  • Mech-Eye DEEP-GL Industrial 3D Camera

    - Large FOV

    - Deep depth of field

    - Suitable for large FOV applications

  • Mech-Eye PRO XS-GL Industrial 3D Camera

    - Ultra-small size

    - Ultra-high precision

    - Minimal thermal drift for consistent performance

    - Suitable for mounting on robotic arms

    - Designed for high-precision scenarios (vision-guided localization and assembly, high-precision picking, etc.)

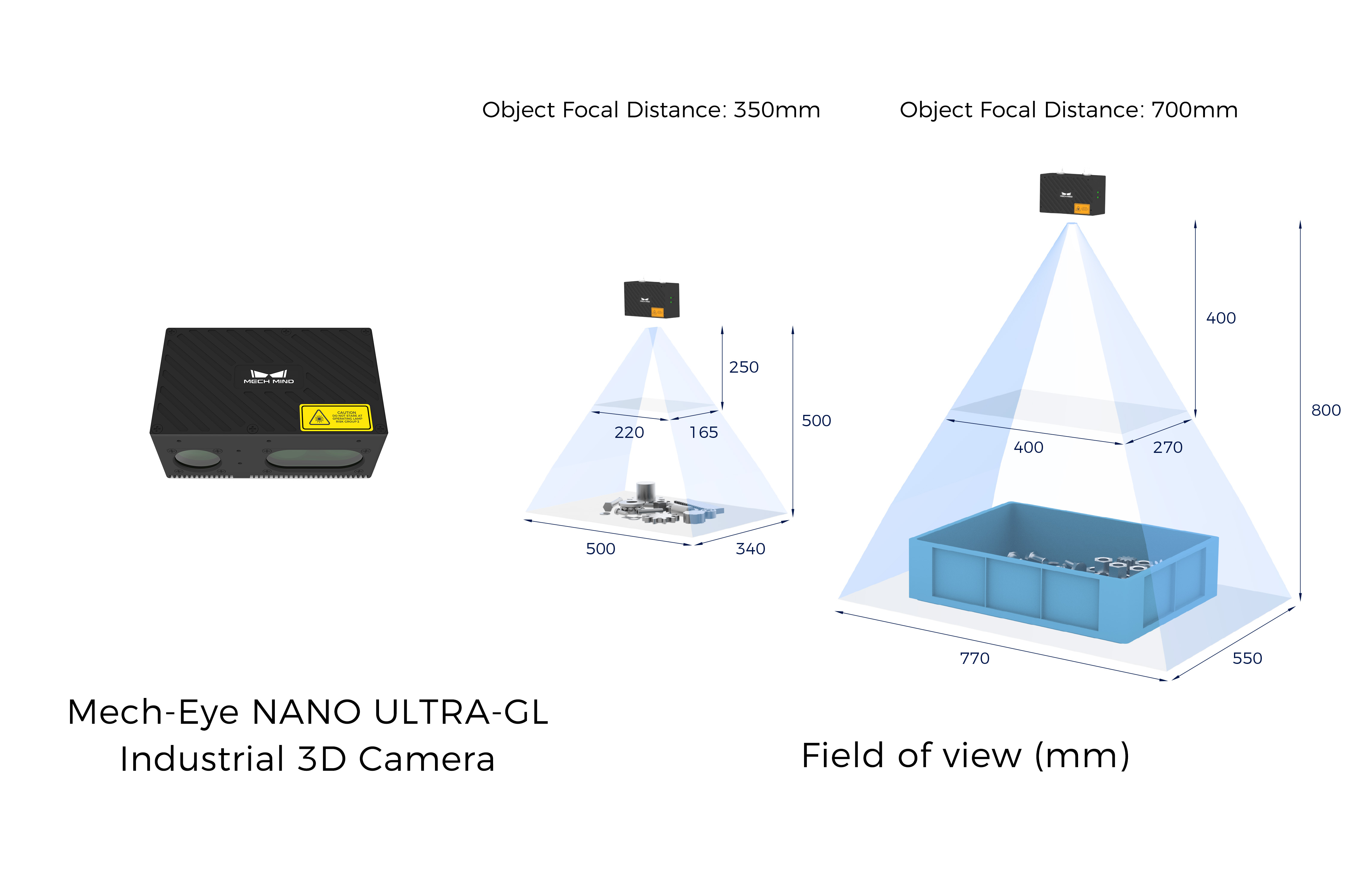

  • Mech-Eye NANO ULTRA-GL Industrial 3D Camera

    - Palm-sized design

    - Ultra-high precision

    - Extended FOV

    - Great resistance to strong ambient light

    - Ideal for welding and fine assembly

Choose the Right 3D Camera for Your Applications

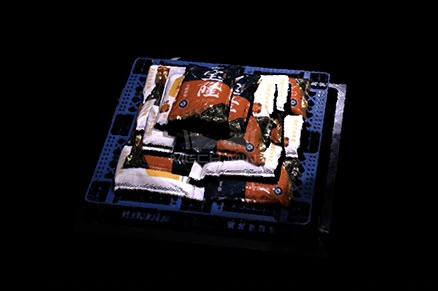

Tightly-Packed Cartons with Patterns and Tapes

Tightly-Packed Cartons with Patterns and TapesColored GoodsNANO ULTRATightly-Packed Cartons with Patterns and Tapes

Tightly-Packed Cartons with Patterns and Tapes

Track Links

Tightly-Packed Cartons with Patterns and Tapes

LSR XL

Track Links

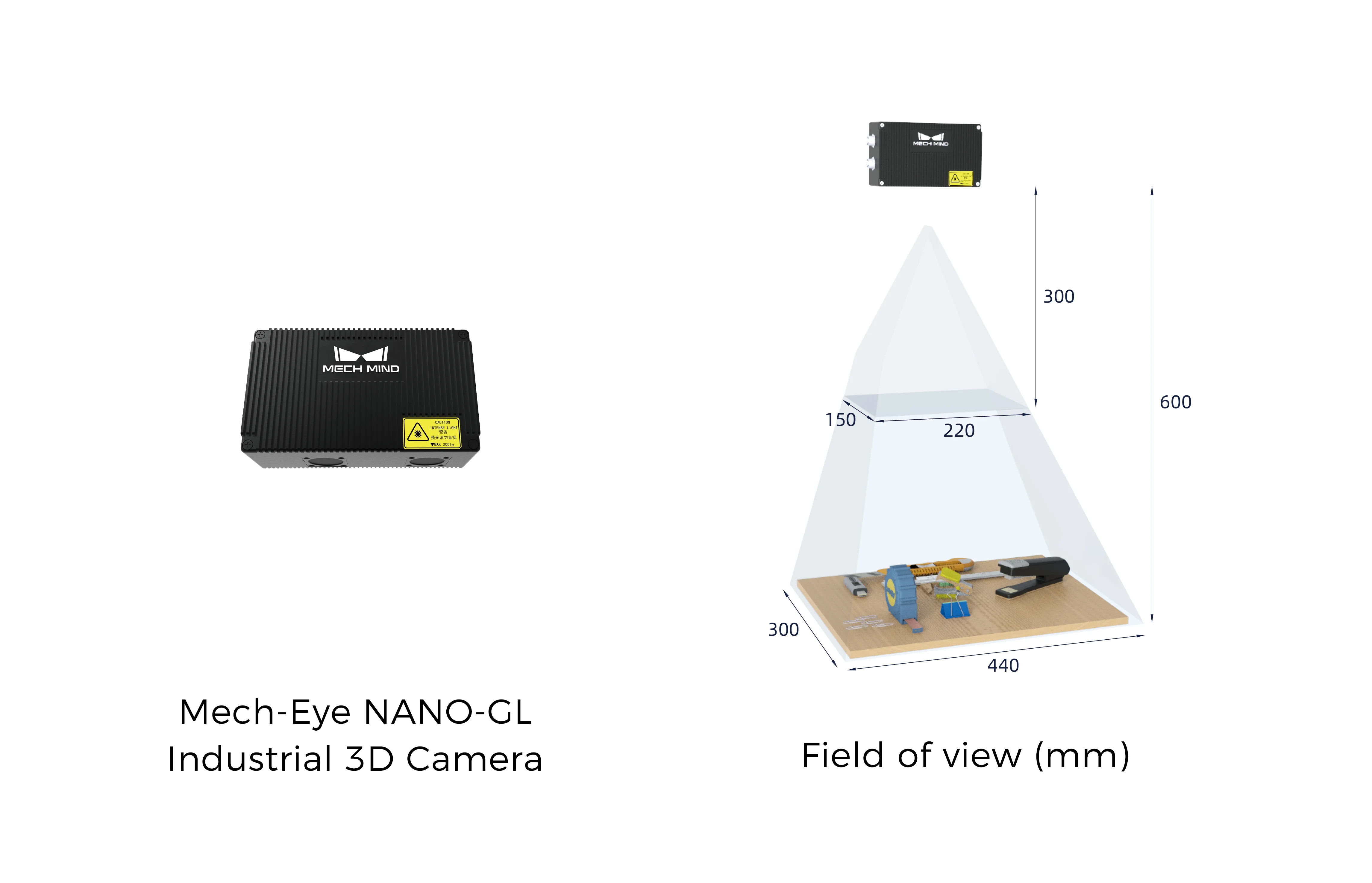

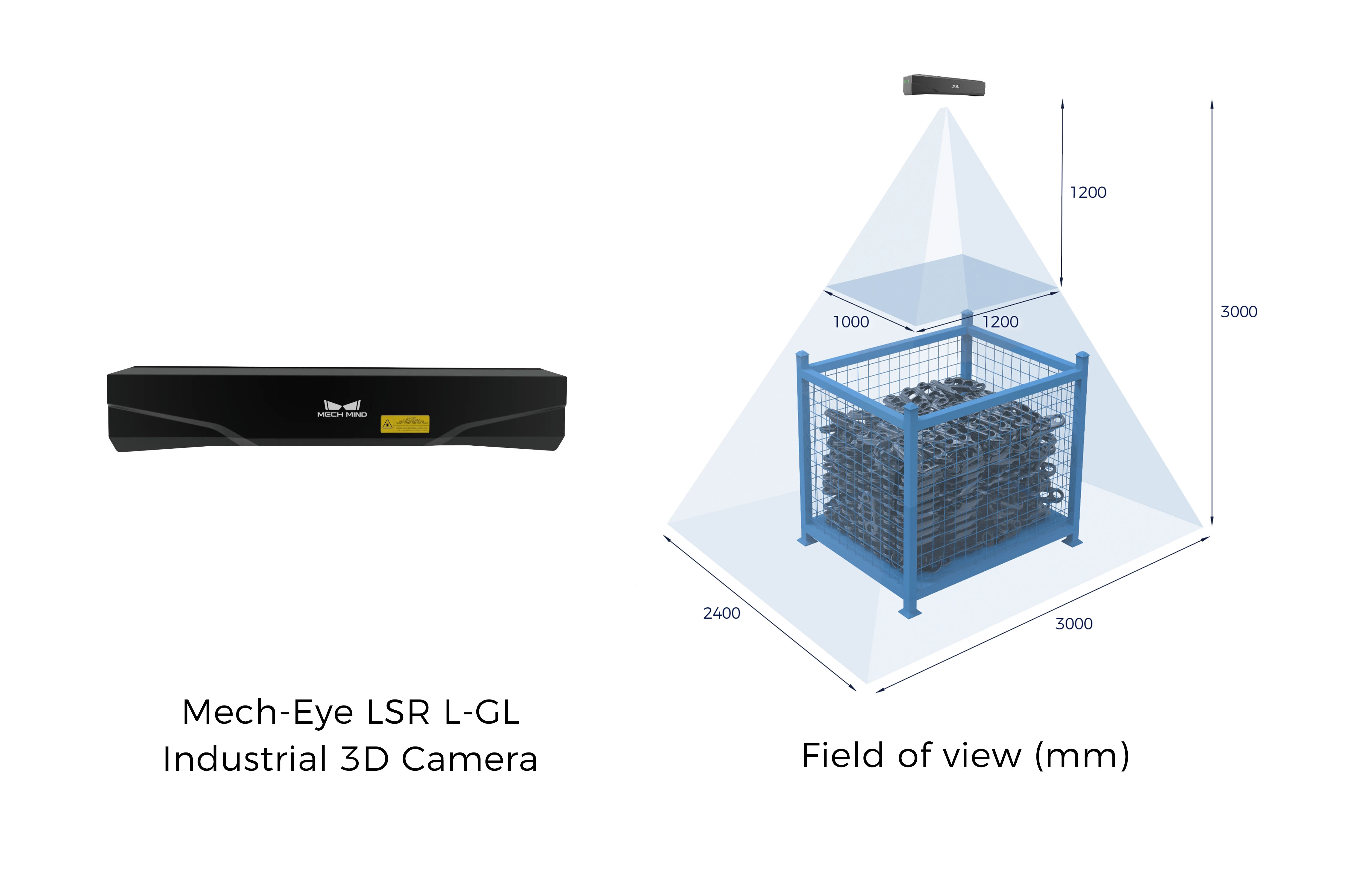

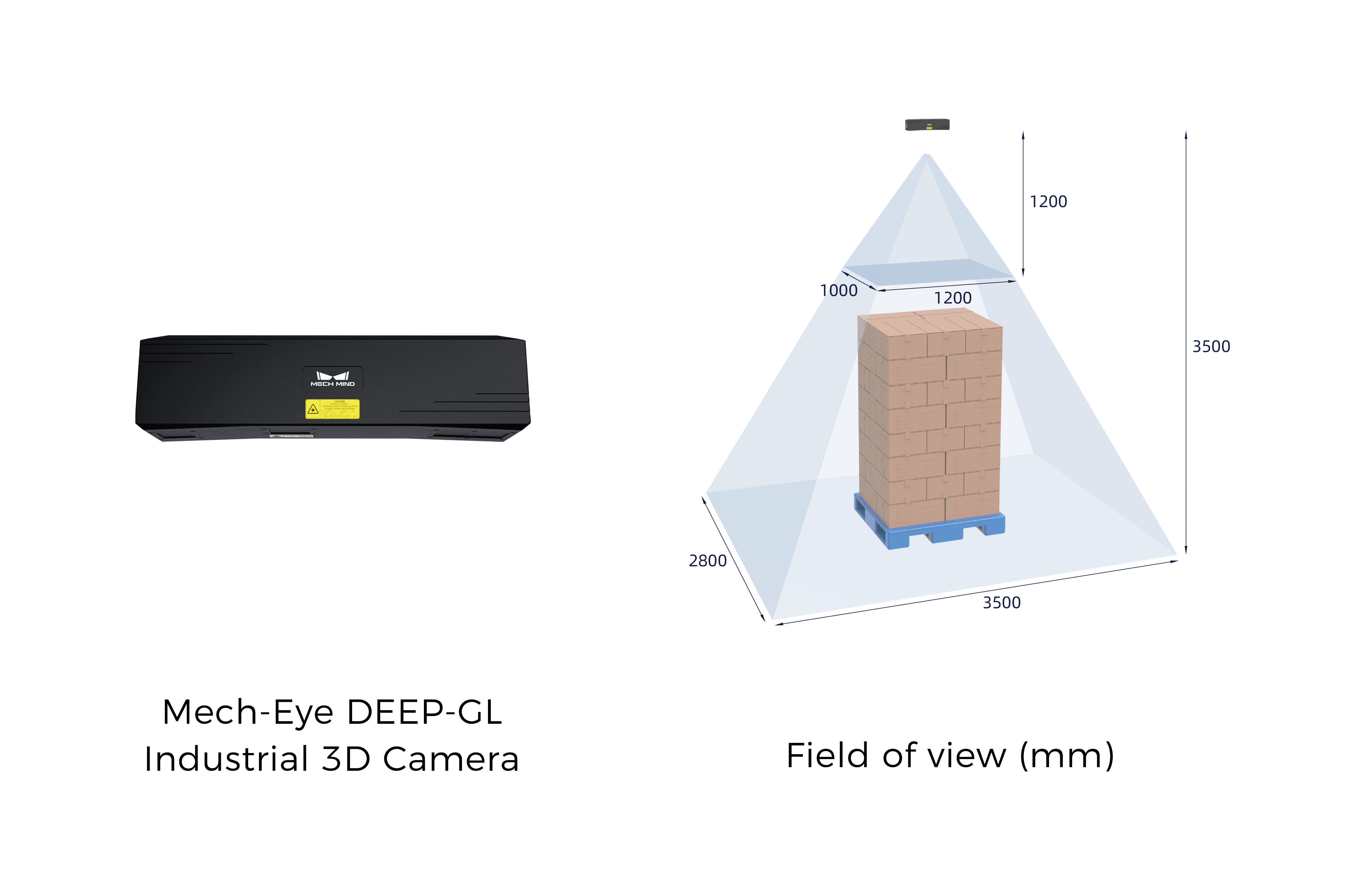

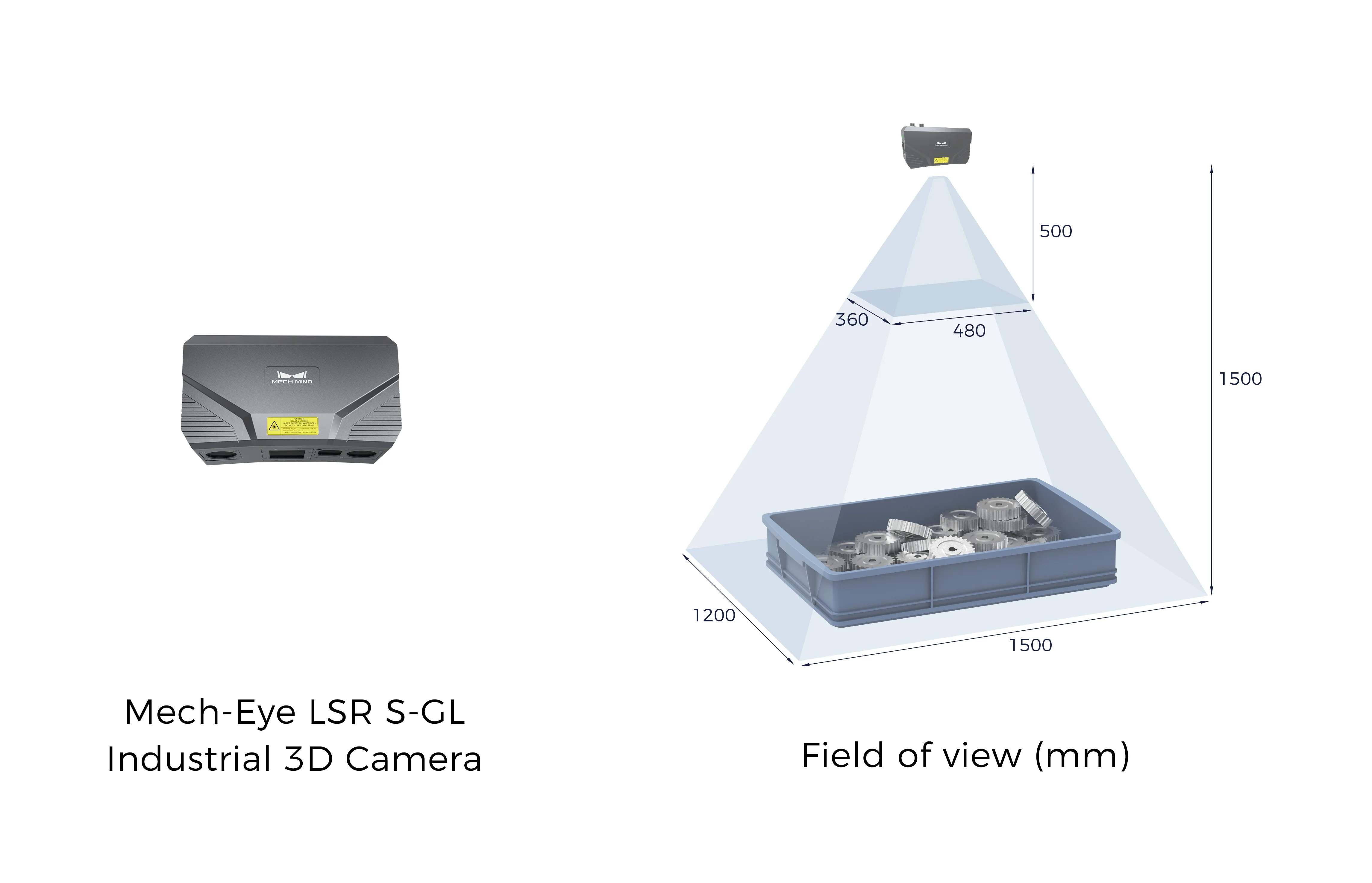

ModelUHP-140-GLPRO XS-GLNANO-GLNANO ULTRA-GL
PRO S-GLPRO M-GLLSR S-GLLSR L-GLLSR XL-GLDEEP-GL

*Working distance(mm)

300 ± 20300–600300–600250–800500–10001000–2000500–15001200–30001600–3500
1200–3500
Near FOV (mm)135 × 90 @ 0.28m220 × 160 @ 0.3 m220 × 150 @ 0.3 m220 × 165 @ 0.25 m370 × 240 @ 0.5 m800 × 450 @ 1.0 m480 × 360 @ 0.5 m1200 × 1000 @ 1.2 m1280 × 1280 @ 1.6 m1200 × 1000 @ 1.2 m
Far FOV (mm)150 × 100 @ 0.32m430 × 320 @ 0.6 m440 × 300 @ 0.6 m770 × 550 @ 0.8 m800 × 450 @ 1.0 m1500 × 890 @ 2.0 m1500 × 1200 @ 1.5 m3000 × 2400 @ 3.0 m3000 × 2800 @ 3.5 m3500 × 2800 @ 3.5 m
Resolution2048 × 15361280 × 10241280 × 10242400 × 18001920 × 12001920 × 1200

Depth Map：

2048 × 1536

RGB：

4000 x 3000

2000 x 1500

Depth Map：

2048 × 1536

RGB：

4000 x 3000

2000 x 1500

Depth Map：

2448 × 2040

RGB：

4000 x 3000

2000 x 1500

Depth Map：

2048 × 1536

RGB：

2000 x 1500

Megapixels3 MP1.3 MP1.3MP4.3 MP2.3 MP2.3 MP////

**Point Z-value

repeatability (σ)

2.6 μm @ 0.3m0.1 mm @ 0.5 m0.1 mm @ 0.5 m0.1 mm @ 0.6 m0.05 mm @ 1 m0.2 mm @ 2 m0.2 mm @ 1.5 m0.5 mm @ 3 m0.2 mm @ 3 m1.0 mm @ 3 m

***Measurement

accuracy (VDI/VDE)

0.03 mm @ 0.3 m0.1 mm @ 0.5 m0.1 mm @ 0.5 m0.1 mm @ 0.6 m0.1 mm @ 1 m0.2 mm @ 2 m1.0 mm @ 1.5 m1.0 mm @ 3 m1.0 mm @ 3 m3.0 mm @ 3m
Typical capture time (s)0.6–0.90.7–1.1

0.6–1.1

0.5–0.90.3–0.60.3–0.60.5–0.90.5–0.90.6–1.10.5–0.9
Baseline (mm)80
936886180270140380800300
Dimensions (mm)260 × 65 × 142160 × 52 × 87145 × 51 × 85125 × 46 × 76265 × 57 × 100353 × 57 × 100228 × 77 × 126459 × 77 × 86942 × 88 × 116366 × 77 × 92
Weight (kg)1.90.80.70.71.61.91.92.94.52.4

Operating

temperature (℃)

0–45-10–45

Communication

interface

Gigabit Ethernet
Image sensor
Sony CMOS for high-end machine vision
High-performance CMOS for high-end machine visionSony CMOS for high-end machine vision
Input
24V DC, 3.75 A24V DC,1.5 A24V DC, 3.75 A
Safety and EMC
CE/FCC/VCCI/KC/ISED/NRTL
Light sourceBlue LED (459 nm, RG2)Blue LED (459 nm, RG2)/White LED (RG2)Blue LED (440 nm, RG2)Blue LED (459 nm, RG2)/White LED (RG2)Red laser (638 nm, Class 2)

IP rating

IP65IP67IP65
CoolingPassive
Remark

* Various object focal distances are available for a single camera model. For details, please refer to the technical specifications.

**The standard deviation of the single point Z value for 100 measurements. The measurement target is a ceramic plate.

***Standard: VDI/VDE2634 Part II.

For information on discontinued models, please refer to camera materials of previous models.

Solutions
  • Depalletizing and Palletizing
    Depalletizing and Palletizing
    Intelligent robotic depalletizing and palletizing solutions are widely used in manufacturing, distribution, and fulfillment applications. Robots guided by the 3D vision system can automatically execute palletizing and depalletizing while maintaining excellent stability and high speed.
  • Mech-Mind Robotics Use Cases
    Machine Tending
    Mech-Mind intelligent machine tending solution enables robots to quickly detect the most challenging parts of various sizes and shapes, accurately pick them, and stably place them at designated locations.
  • Depalletizing and Palletizing
    Piece Picking
    Mech-Mind 3D vision solution enables robots to accurately pick various individual items (SKUs) from an inventory bin and place them into an order container. Robots, guided by 3D vision system, can handle a wide variety of items (including cartons, boxes, poly bags, transparent packages, etc.) with ease.
  • Depalletizing and Palletizing
    Bin Picking
    Guided by Mech-Mind 3D vision system, robots can recognize randomly-piled materials, even those with dark or reflective surfaces and complex structures, and then pick them up from deep bins accurately without damaging the components.
  • Assembly, Locating, and Gluing
    Localization and Assembly
    Mech-Mind 3D vision system enables robots to manage complex assembly, localization, and other automation tasks with high accuracy and remarkable dexterity.
  • Inline Measurement
    Inline Measurement
    Mech-Mind's inline 3D measurement system delivers high-performance 3D measurement solutions for various manufacturing processes in the automotive and new energy industries, including body-in-white manufacturing, automotive component inspection, and battery tray manufacturing.

Cases

Videos
  • Mech-Eye LSR Industrial 3D Camera


  • Mech-Eye PRO 3D Camera Series


  • Mech-Eye NANO-GL Industrial 3D Camera

Popular FAQs for Mech-Eye Industrial 3D Cameras


Q1: What is an industrial 3D camera?

An industrial 3D camera is a camera used in industrial applications which can capture objects and reconstruct them from a three-dimensional image. It's been increasingly used in diverse industries, especially in manufacturing and logistics.


Q2: How does the industrial 3D camera work?

Usually, industrial 3D cameras work with robots to complete various industrial tasks like bin picking, machine tending, assembly, inspection, measurement, etc. Industrial 3D cameras can be mounted on the arm robots to capture and collect 3D data of the target objects, which is fundamental for robots to execute further steps like picking & placing, loading & unloading, etc.


Q3: What are the main features of Mech-Eye industrial 3D cameras?

Mech-Eye industrial 3D cameras feature high accuracy, fast processing speed, and high-cost performance.
Mech-Eye industrial 3D cameras have full model options, which cover a wide range of industrial applications with diverse requirements on working distance, accuracy, ambient light resistance, etc.



Q4: What are the most used applications of Mech-Eye industrial 3D cameras?

Mech-Eye industrial 3D cameras can be used in almost all common robot applications, including bin picking, machine tending, palletizing & depalletizing, automated piece picking, assembly, etc.
