Mech-MSR 3D Measurement and Inspection Software

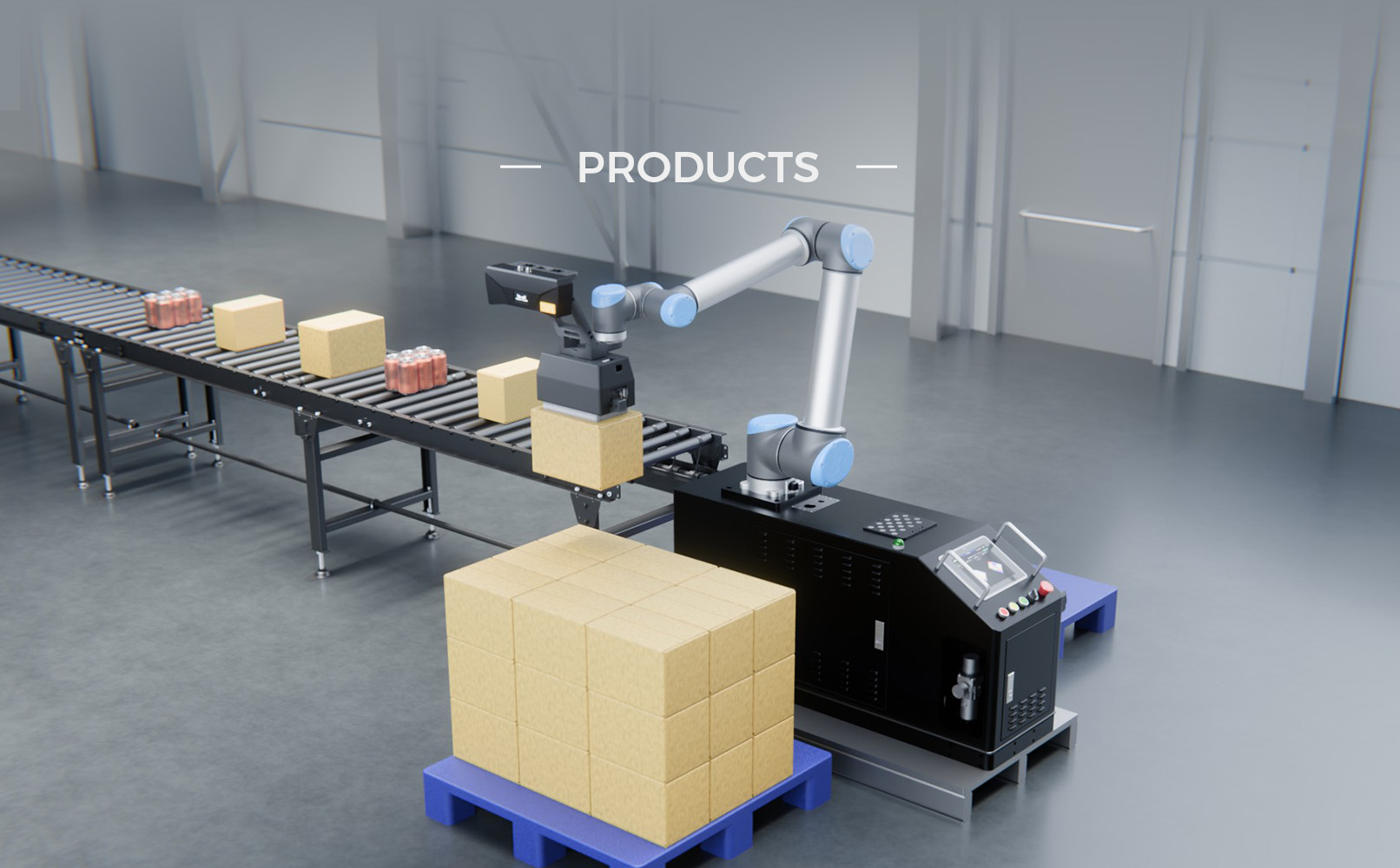

Mech-Station PalBot

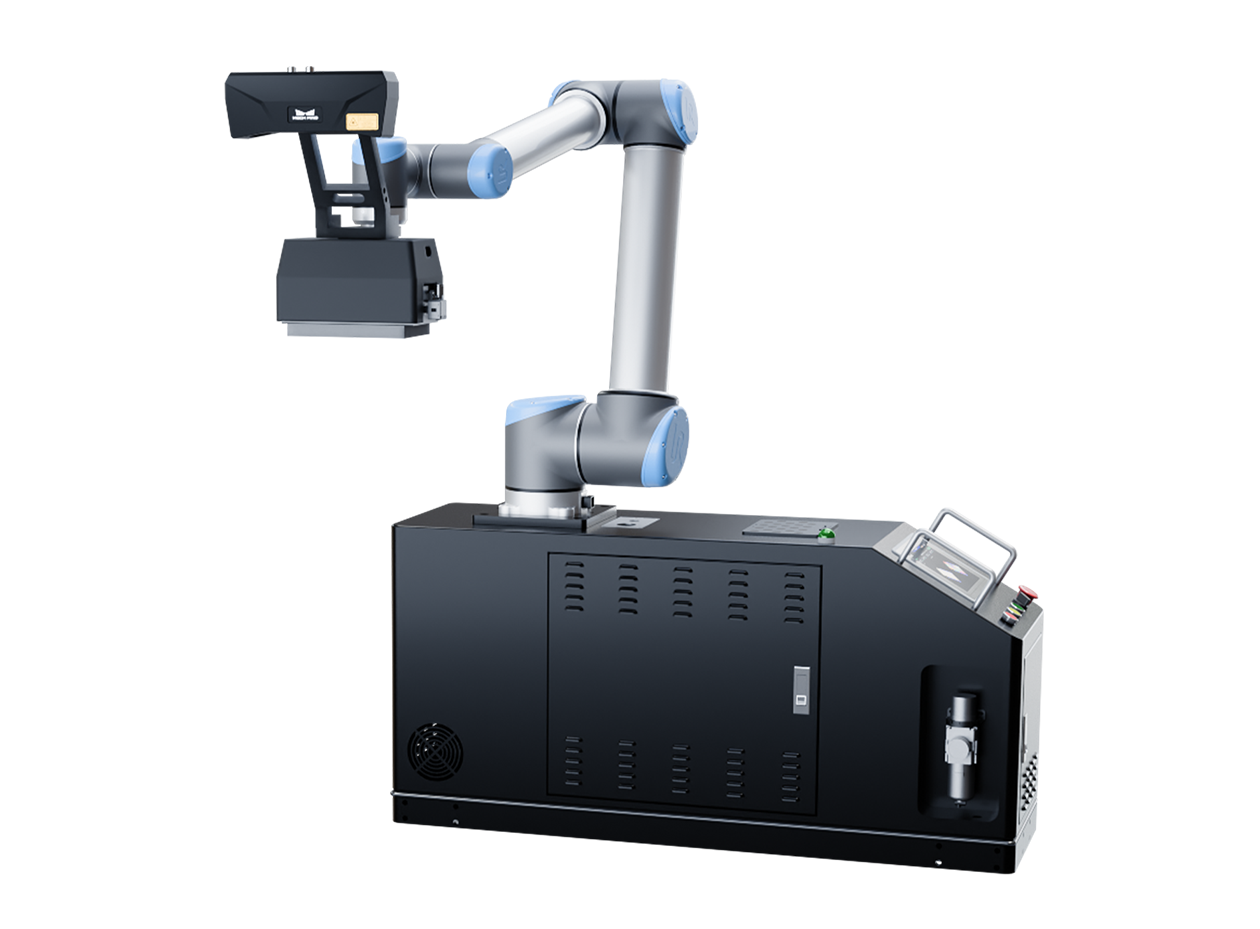

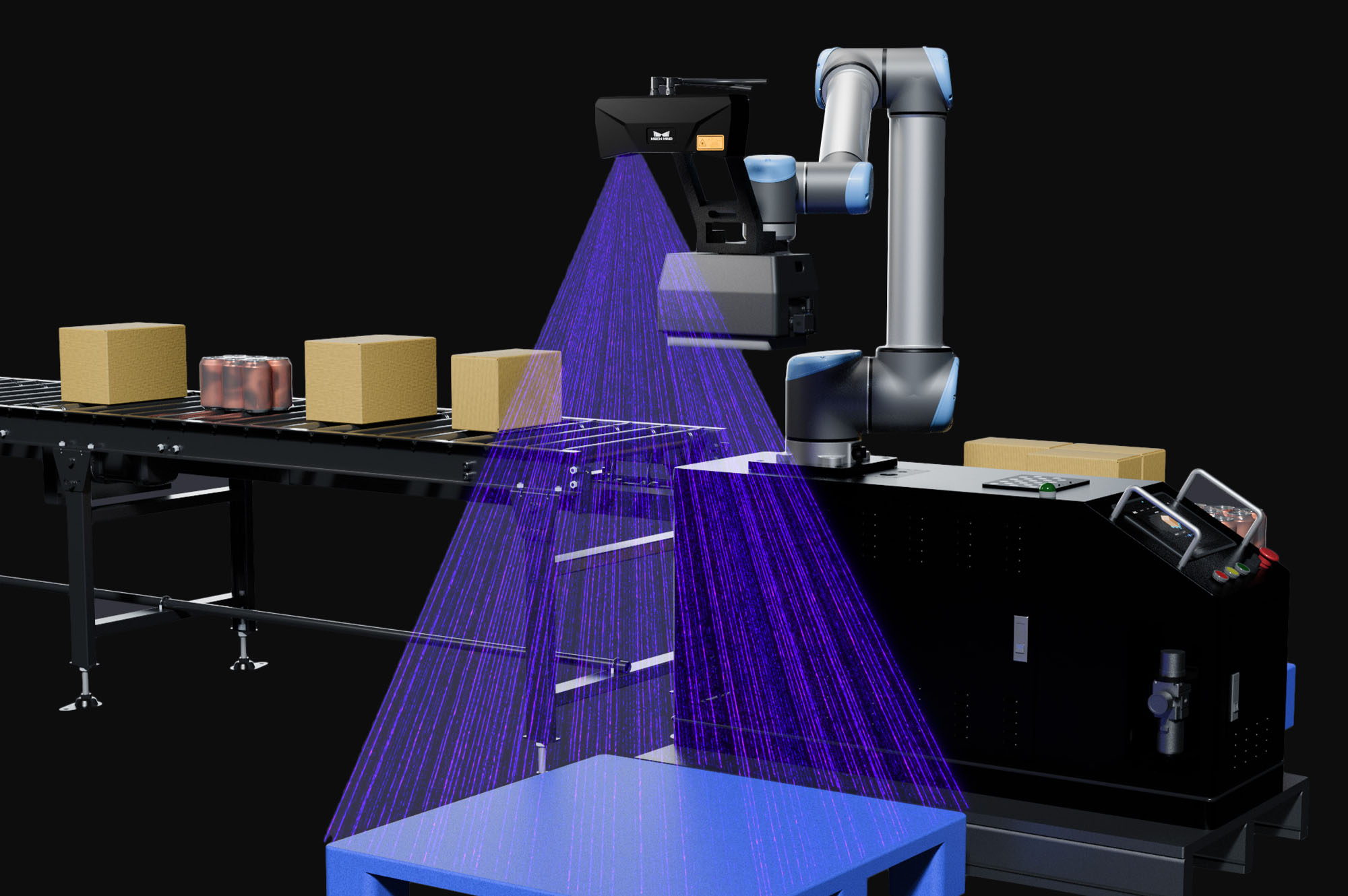

Mech-Station PalBot is an AI & 3D vision-powered robotic station for fully autonomous depalletizing and palletizing. Designed for smart logistics and flexible production environments, it integrates high-performance collaborative robots, the Mech-Eye high-precision 3D camera, advanced AI algorithms, and other modular components to deliver fast deployment, simplified operation, and maximum productivity with minimal effort.

AI & 3D Vision-Powered Robotic Station for Depalletizing & Palletizing

Why Choose Mech-Station PalBot?

    Plug-and-Play Deployment

    Unbox, power up, and tap the screen; deployed in minutes, not weeks.

    All-in-One Platform

    Reliable performance across multiple tasks on a single robotic station.

    No-Code Operation & Simplified Tasks

    An intuitive user interface designed for operators; no programming skills required.
    AI & 3D Vision-Powered Flexibility

    3D cameras and embodied AI enable the system to handle any object without per-SKU reprogramming.
    Compact & Mobile Design

    Compact footprint; easy to fit into tight spaces and relocate the robotic station as needed.
    Modular & Production-Ready

    Standardized, pre-assembled modules enable fast changeovers and easy maintenance.

Set Up Multiple Tasks Quickly and Efficiently Within 30 Minutes

Step1

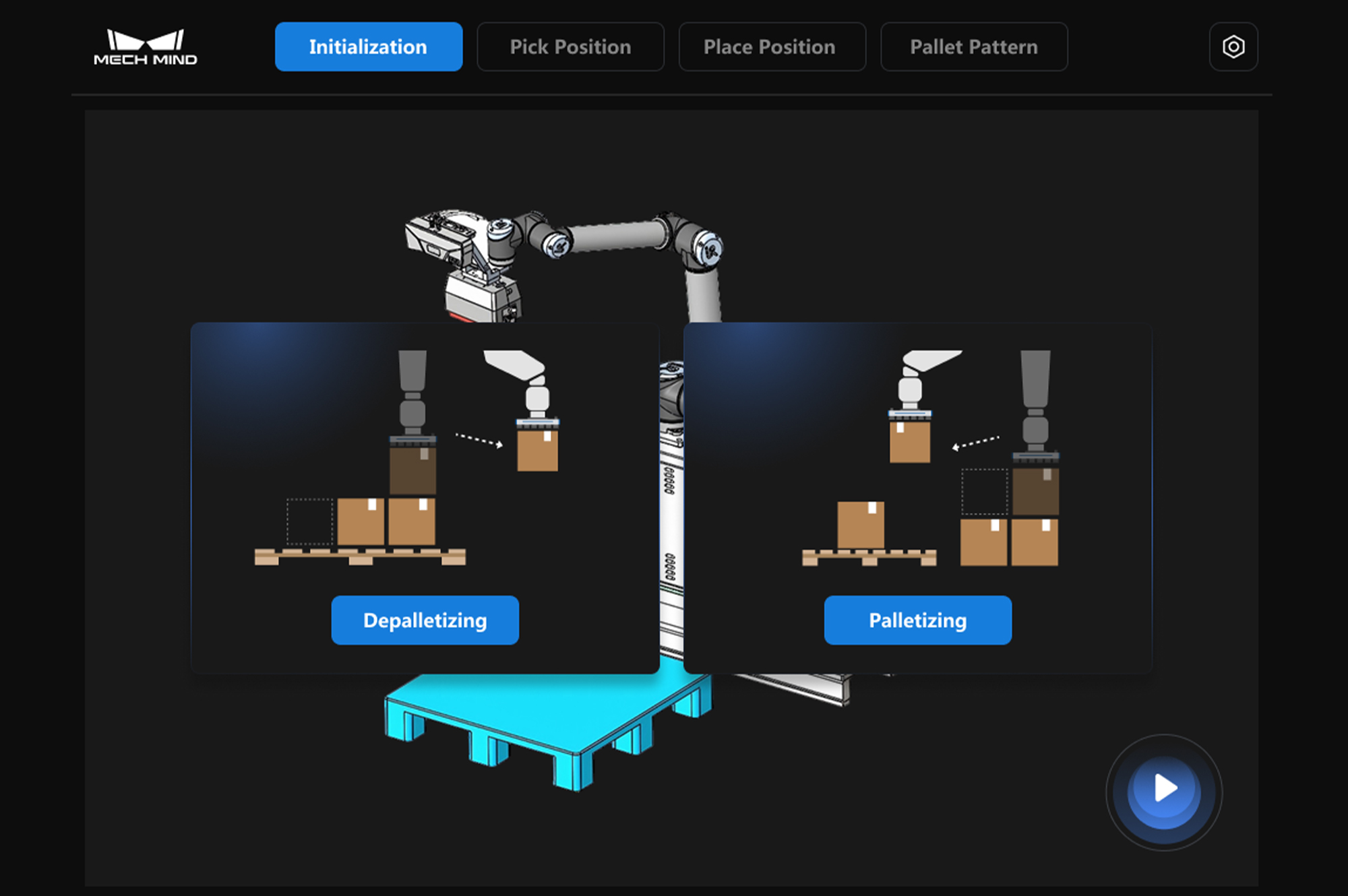

One-Click Initialization

Step2

Pick Position Scan & Setup

Step3

Place Position Scan & Setup

Step4

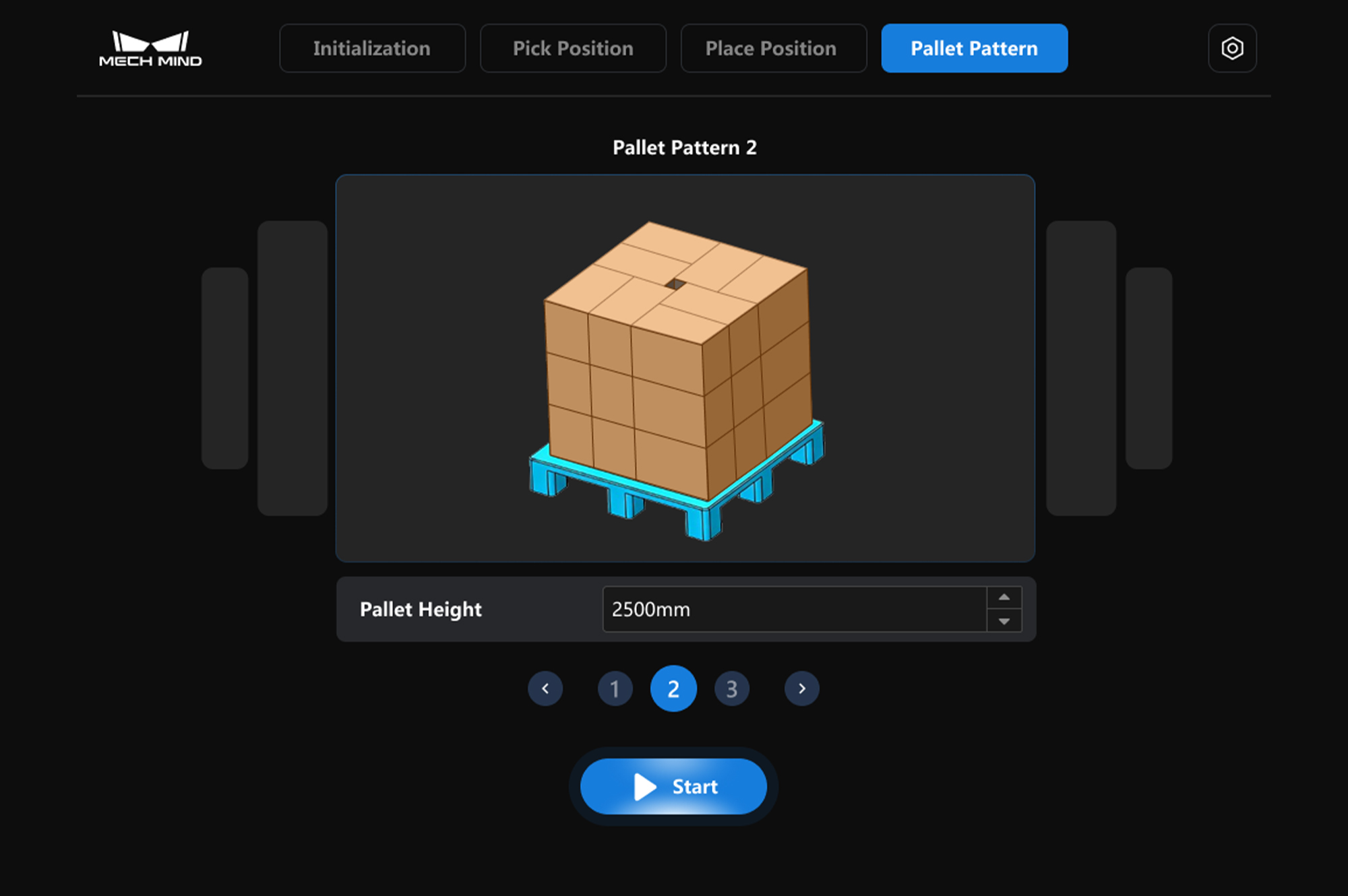

One-Click Start

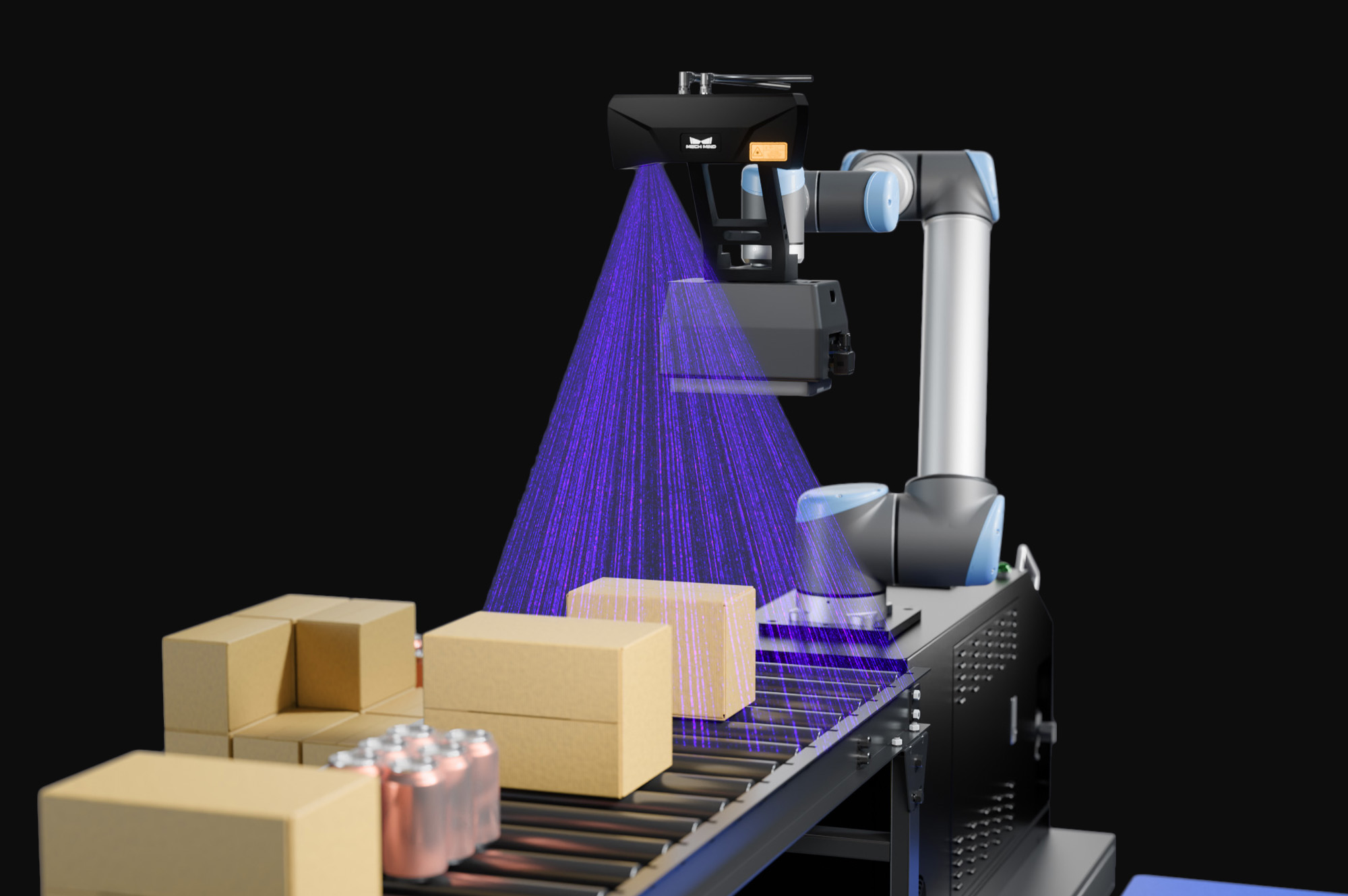

Industry-Leading 3D Vision for Reliable Pick-and-Place

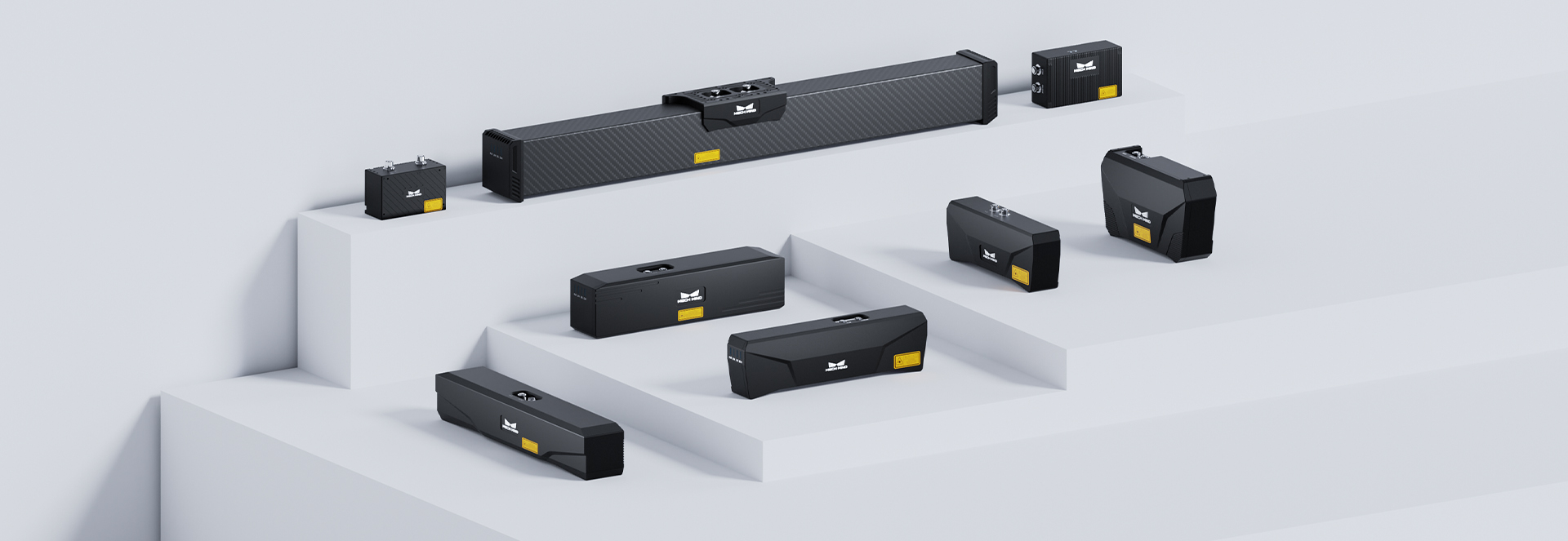

Mech-Station PalBot is equipped with our self-developed Mech-Eye industrial 3D cameras, which offer a variety of models for different production scenarios.

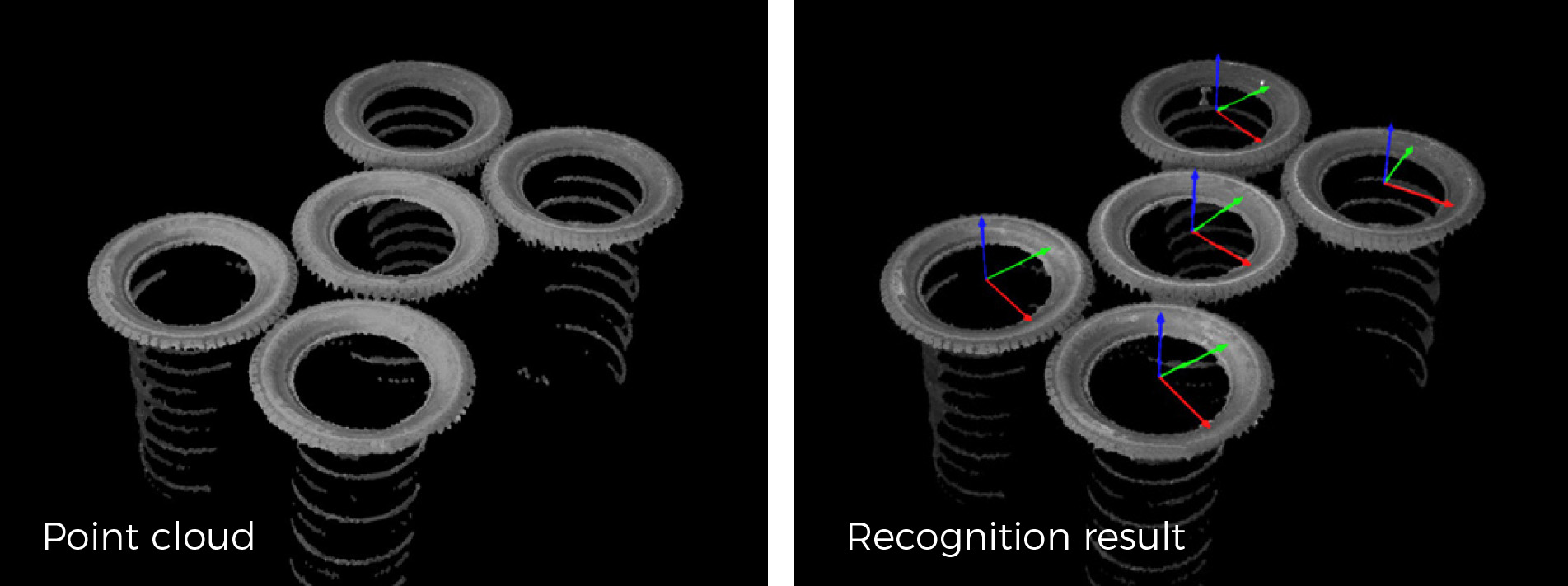

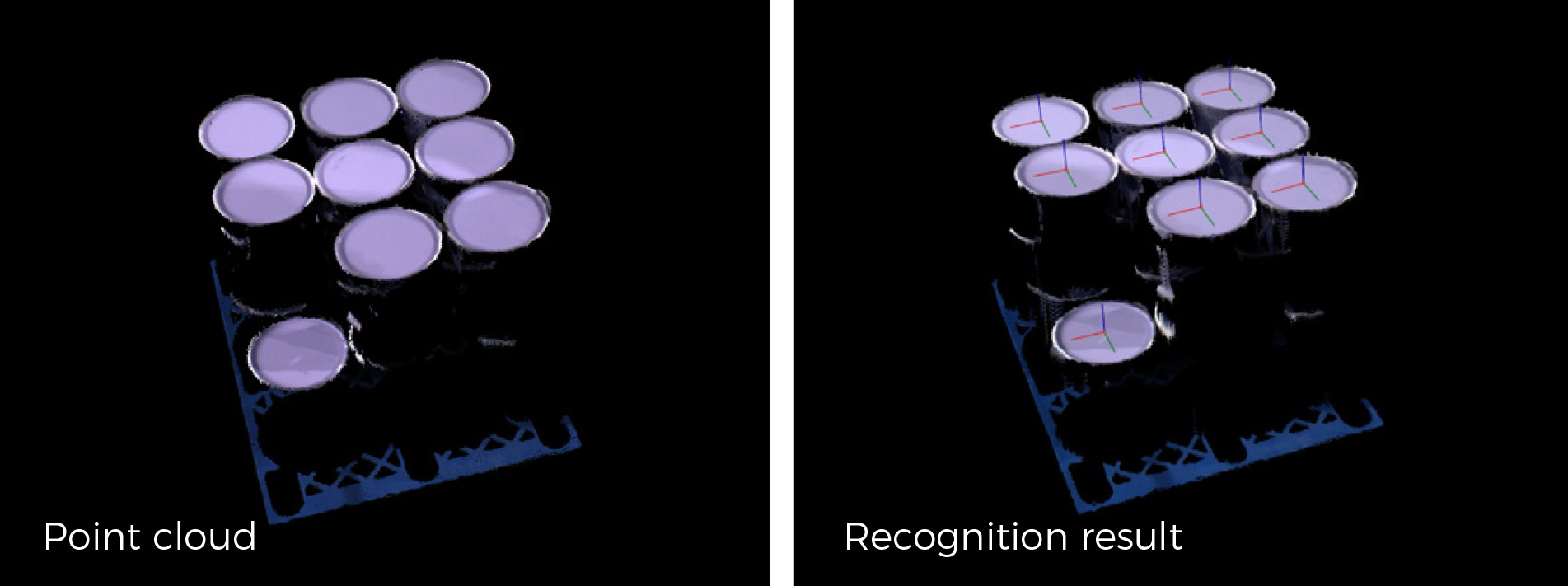

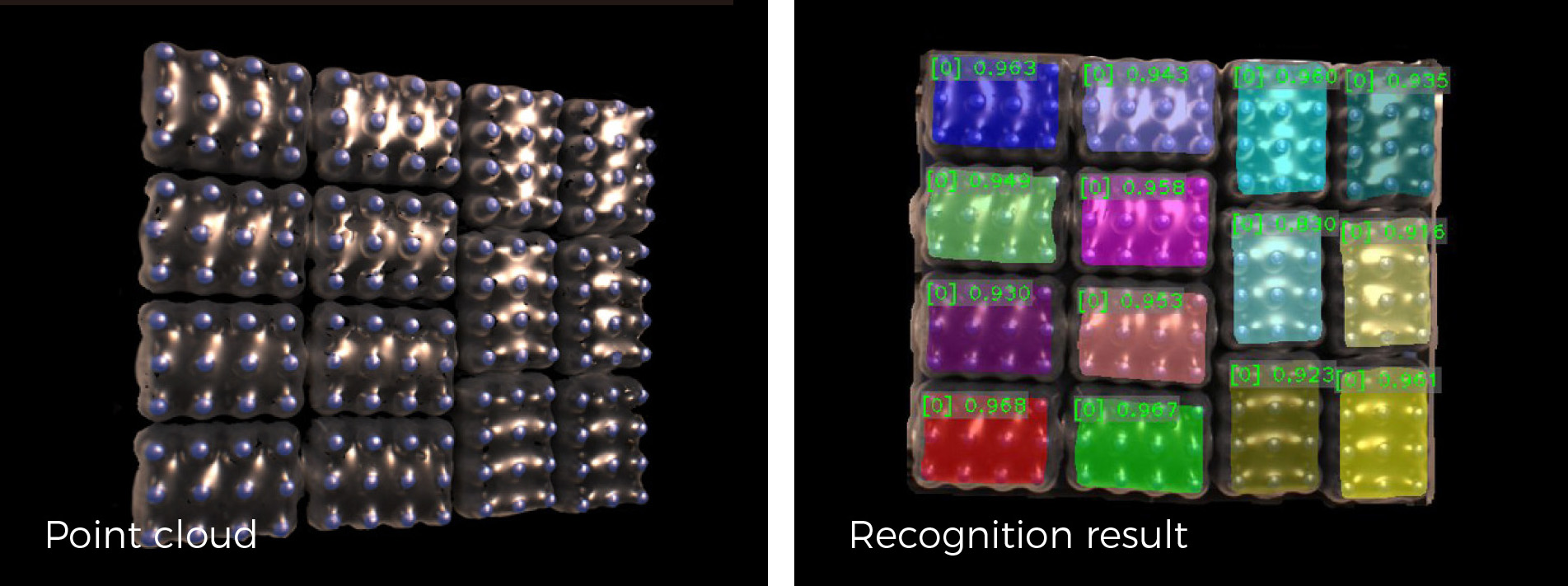

Powered by the Mech-Eye high-precision 3D camera and advanced AI algorithms, PalBot obtains high-quality point clouds for objects with varying materials and shapes, enabling flexible handling of multiple SKUs.

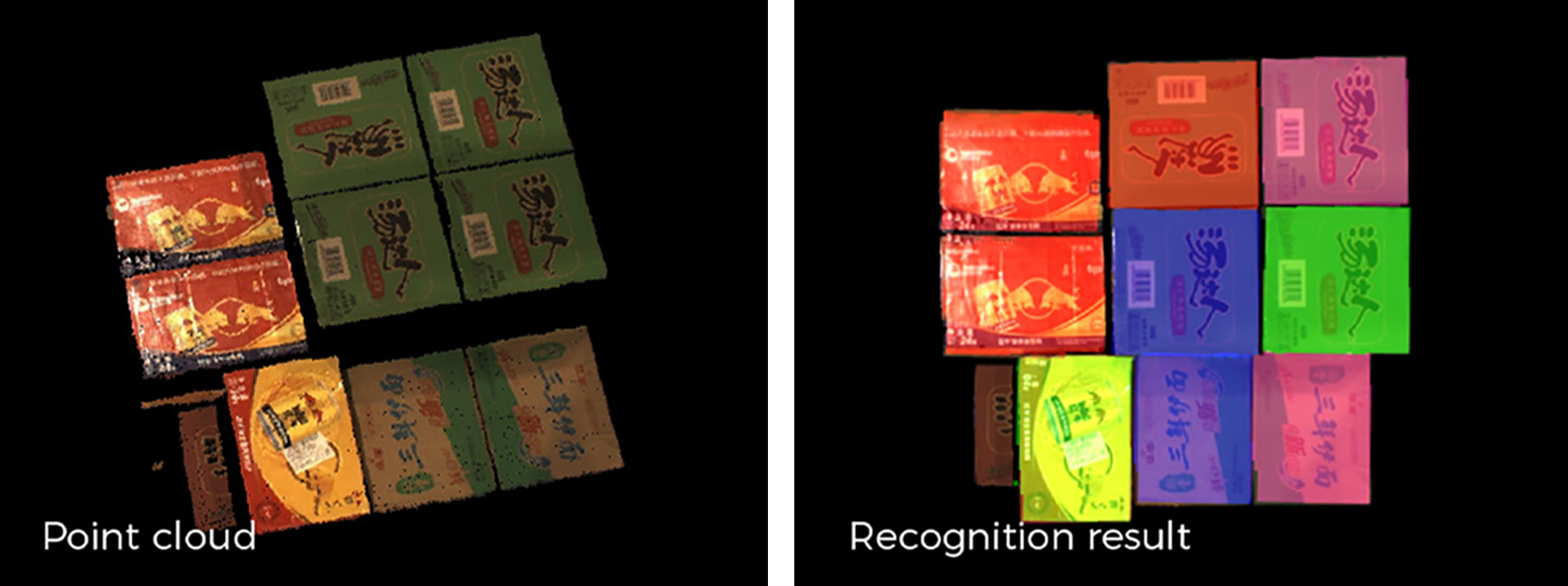

Tightly stacked cases

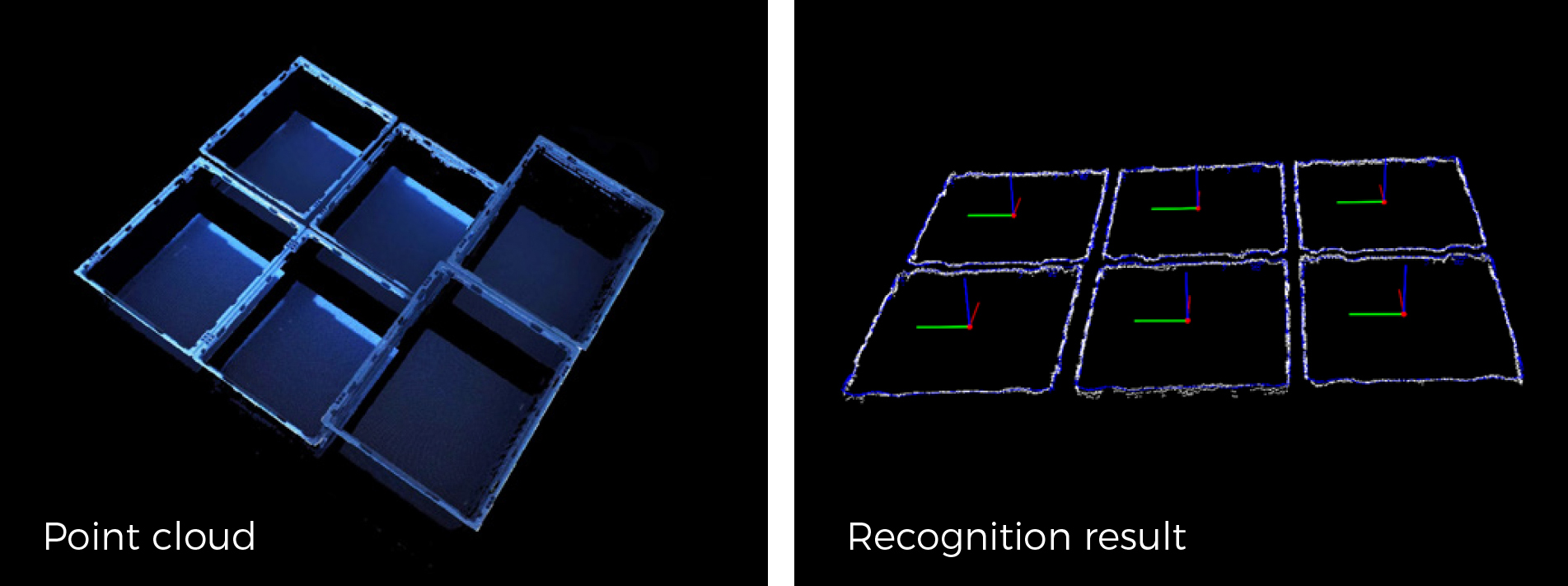

Tightly packed totes

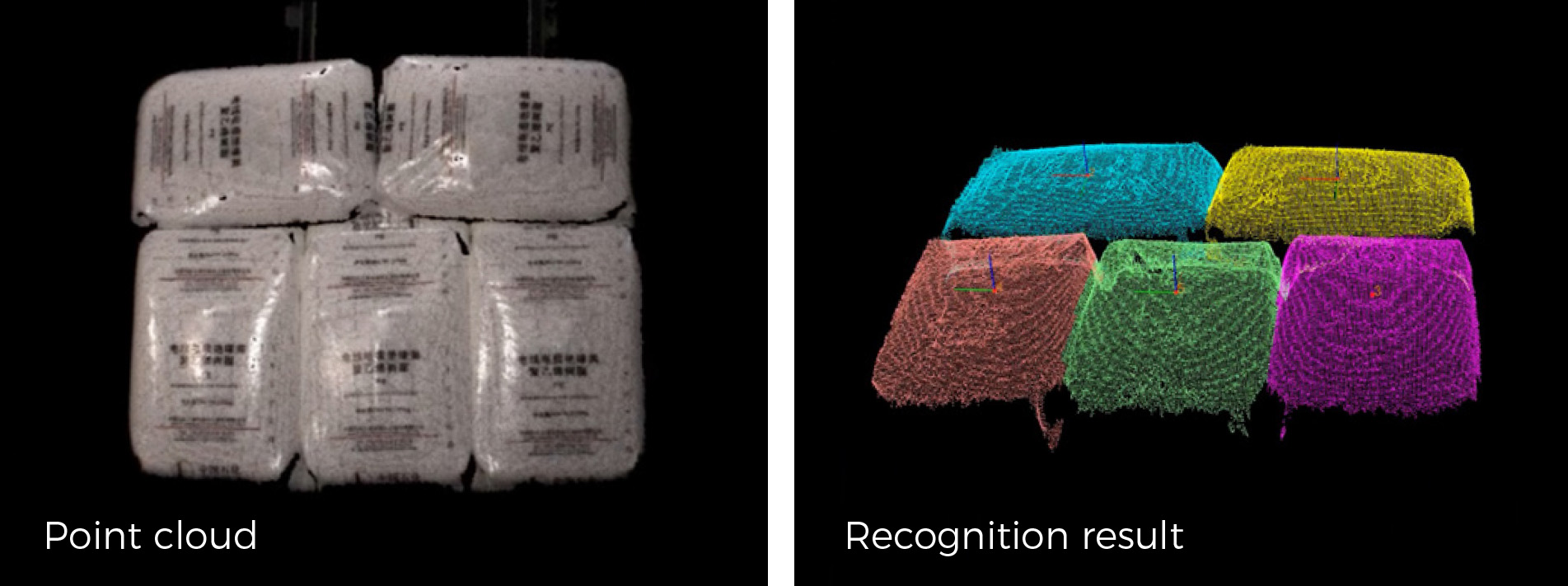

Deformable sacks
Transparent shrink-wrapped bottles
Reflective metal kegs
Large dark tires

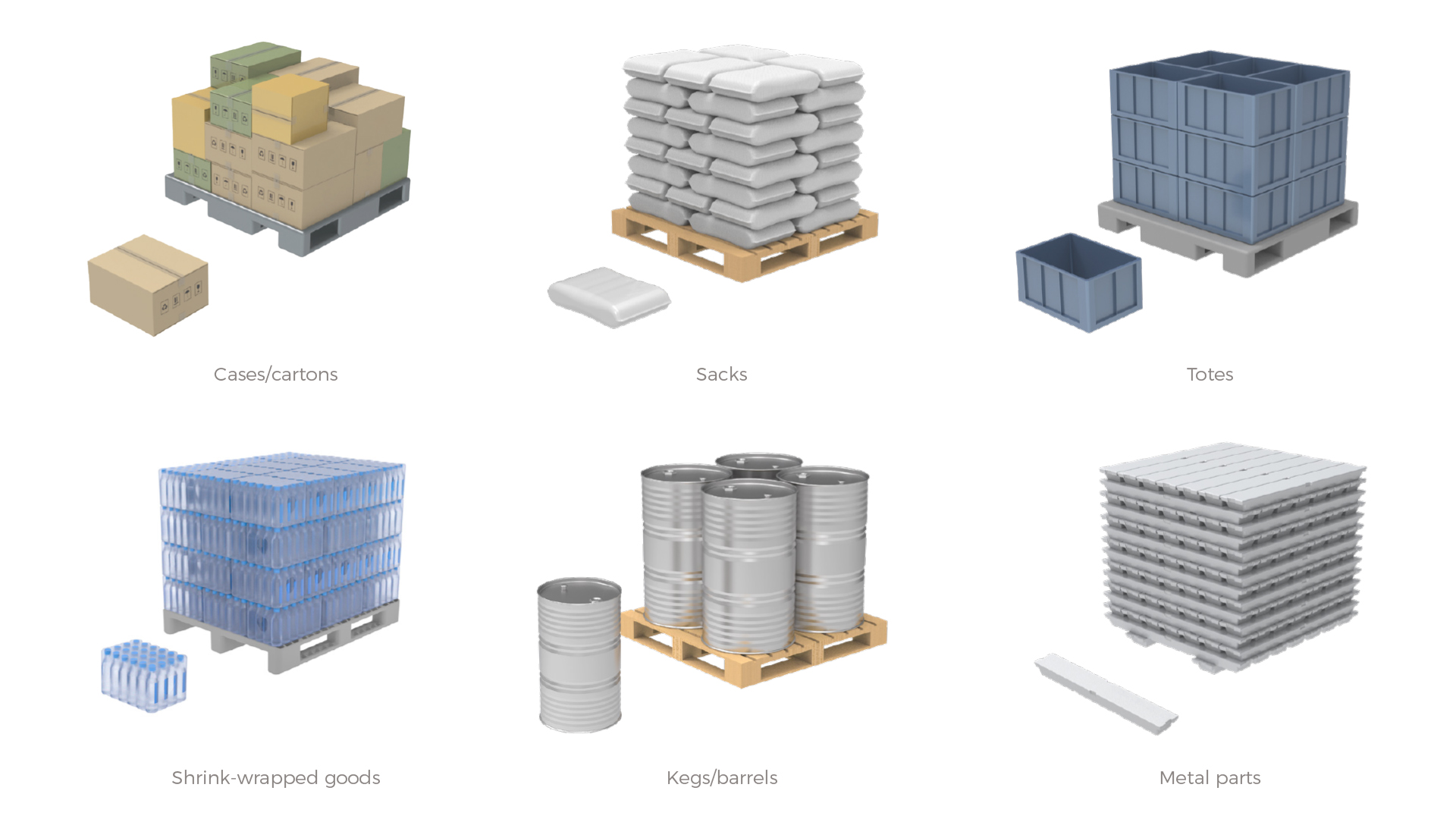

Built for real-world depalletizing and palletizing, PalBot reliably handles a wide range of common objects.

Choose the Right PalBot for Your Applications

Model PalBot 10 PalBot 15 PalBot 20 PalBot 20 P

(Integrated Lift Table)
Max Payload 5 kg 10 kg 18 kg 18 kg
Cycle Time Up to 12 cycles/min Up to 9 cycles/min Up to 9 cycles/min Up to 9 cycles/min
Max Pallet Height 1500 mm 1500 mm 2000 mm 2500 mm
Pallet Size 800 x 800 mm 1000 x 1000 mm 1200 x 1100 mm 1200 x 1100 mm
Far FOV 800 x 450 mm @ 1.0 m 800 x 450 mm @ 1.0 m 800 x 450 mm @ 1.0 m 800 x 450 mm @ 1.0 m
Footprint 1200 x 800 mm 1200 x 1500 mm 1200 x 1500 mm 1200 x 2000 mm
Power Supply 220 V 50 Hz (60 Hz) 220 V 50 Hz (60 Hz) 220 V 50 Hz (60 Hz) 220 V 50 Hz (60 Hz)
3D Camera Mech-Eye PRO S-GL Mech-Eye PRO S-GL Mech-Eye PRO S-GL Mech-Eye PRO S-GL
Cobot Model (Optional) UR 12e UR 15 UR 20 UR 20
Additional Options
Pallet positioning sensor Infeed conveyor Safety fence Multiple pallet types Multiple gripper types
Standard specifications for reference only—more models and configurations are available to meet your requirements.
